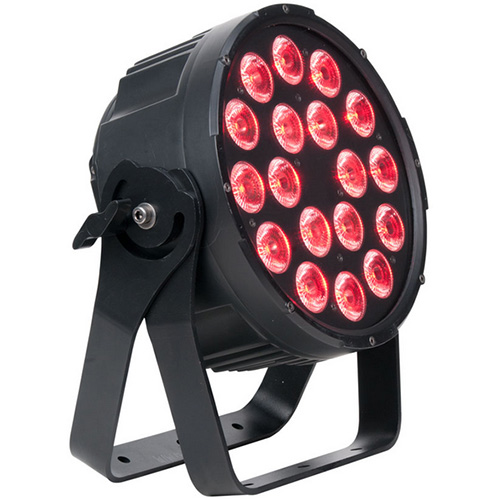

Elation SIXPAR 300IP LED
The new IP65 rated SIXPAR 300IP features (18) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour
LED life, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve
modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged
die-cast aluminum exterior, flicker free operation for TV and FILM, 220W max power consumption, and a
multi-voltage universal auto switching power supply (110-250v).
Features
- IP65 Rated
- 15° Beam 25° Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM - Remote Device Management
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Source
- (18) 12W 6-in-1 RGBAW-UV LEDs
- 100,000 Hour Average LED Life
Photometric Data (15° Full ON)
| Output |
Distance |
| 24,500 LUX (2,276 FC) |
1 m (3.3') |
| 8,500 LUX (790 FC) |
2 m (6.6') |
| 3,950 LUX (367 FC) |
3 m (9.8') |
| 2,150 LUX (200 FC) |
4 m (13.1') |
| 1,350 LUX (125 FC) |
5 m (16.5') |
Effects
- Electronic Strobe
- Colour and Chase Macros
- Electronic Dimming: 0% - 100%
- 5 Variable Dimming Curve Modes
Control / Connections
- (4) DMX Channel Modes (6 / 7 / 8 / 12)

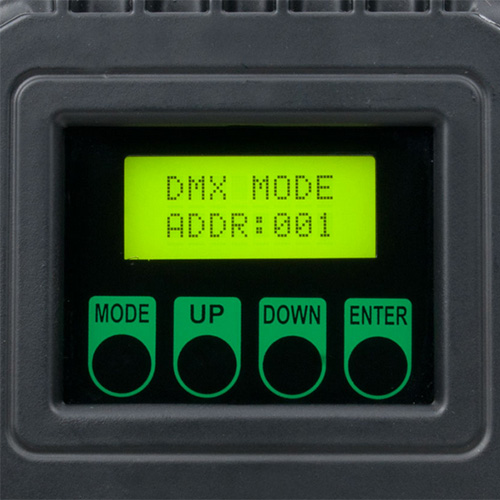

- (4) Button Touch Control Panel
- LCD Menu Display
- IP DMX In/Out
- IP Power In/Out
Size / Weight
- Length: 14.4" (365mm)
- Width: 6.2" (157mm)
- Vertical Height: 14.4" (365mm)
- Weight: 19.2 lbs (8.7 kg)
Electrical / Thermal
- AC 110-250V - 50/60 Hz
- 220W Max Power Consumption
- Power Linking: 5pcs @ 110V / 10 pcs @240V
- 68°F to 113°F (20°C to 45°C)
Approvals / Ratings
Installation
- Rigging: Integrated Dual Yoke / Floor Stand
- Working Position: Any (360°)

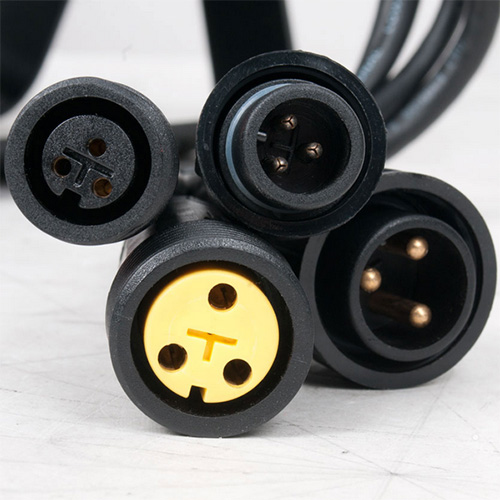

Included Items
- Male Edison to IP Female Power Cable 2 m (6.6')
- Male 3pin XLR to IP Female DMX Input Cable 1 m (3.3')
- Female 3pin XLR to IP Male DMX Output Cable 1 m (3.3')

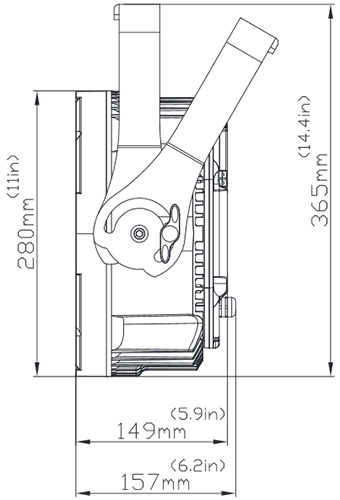

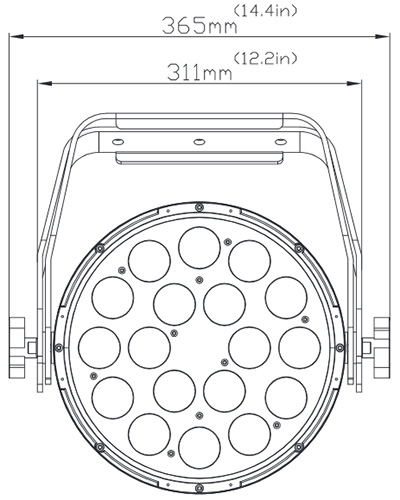

Dimensions
Downloads
SIXPAR 300IP Spec Sheet
Price $1170.00
