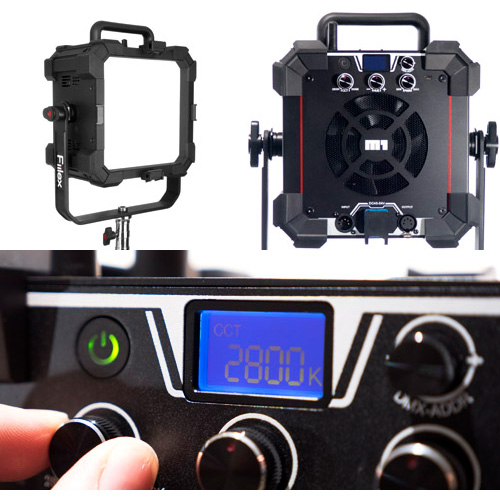

Fiilex M1 LED

Fiilex brings its LED expertise into the realm of multi-source lighting with the new M1 panel light.

For this fixture our Dense-Matrix LED technology has been arrayed into a unique form-factor that marries a diffuse flicker-free source with formidable power and throw. The M1 is designed to easily accommodate Fiilex's light-shaping accessories and give filmmakers maximum control over its 1500W equivalent output. With its built-in softbox mount users can skip the speed ring and directly attach the softbox quickly. Our unique fresnel array clips simply into place narrowing the M1's beam into a punchy source. The M1 also features Fiilex's professional-grade tunability options, which include full dimmability, colour tunability from 2800 to 6500K, and hue control. With the M1, Fiilex users can complement their single source Q and P series lights with the gorgeous, broad throw of a top-tier panel fixture.



Features

  • 1500W Tungsten Output Equivalent, 320W Power Draw
  • Built-In Softbox Mount (Speed Ring Not Required)
  • Full Dimming
  • Tunable CCT (2800 - 6500K)
  • IP24 Rating (Water-Resistant)
  • High CRI (>93) at any Colour Temperature
  • WiFi Control
  • Multiple Dense Matrix LED Light Sources
  • LCD Display
  • Flicker Free at any Frame Rate
  • Broadband Full Spectrum LED Source
  • DMX (512 Channels)
  • Generates Minimal Heat
  • Custom Travel Case Available
  • Does Not Emit UV Light
  • Designed in USA, Assembled in Taiwan

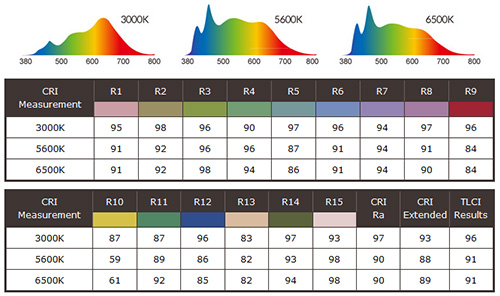

Spectral Data



Specifications

Size L 6.7" x W 11.6" x H 16.5" (with Yoke)
171mm x 294mm x 418mm (with Yoke)
L 6.7" x W8.7" x H8.7" (without Yoke)
171mm x 220mm x 220mm (without Yoke)
Weight (Includes Yoke) 9.5 lbs / 4.3 kg
Ballast Weight 5.1 lbs / 2.3 kg
IP Rating IP24 (Water Resistant)
LED 4 x Dense Matrix LED
Thermal Design Advanced Vapour Cooling System
Beam Angle 110
33 with M1 Fresnel Lens (Not Included)
CCT Range 2800 - 6500K Continuous Tuning
Hue Control .25 Magenta / Green
CRI >93
LED Life 42,000 hrs - (15 Years of Average Use)
Power Consumption 320W Max AC / 300W Max DC / Comparable in Output to 1500W Tungsten
Input Voltage AC Power: 100-240 VAC, 50~60Hz, Max 340W AC
DC Power 45-54V, Max 300W
Input Port Detachable Power Con Cable
DMX Control 2 XLR ports (512 Addresses)
Temperature Range 32-104 F / 0-40 C (Over Temperature Protection)
Mount Style Junior Pin Receiver - 5/8th Inch (C-Stand) [Other mounts available]
Barndoor Mount Size Size IV

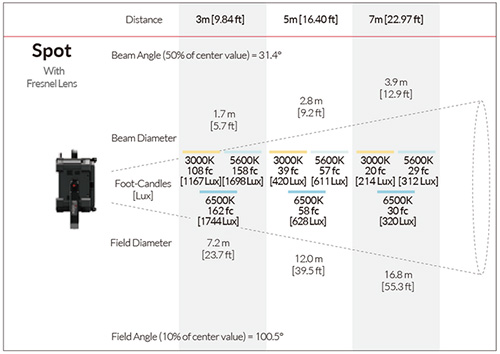

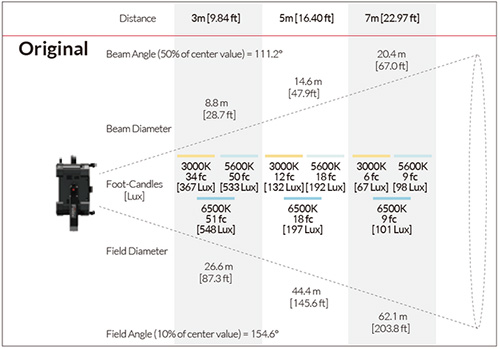

Photometric Data





Items Included

(1) M1 Light Head (1) Power Adapter (1) 20' PowerCon Cable (1) Super Clamp

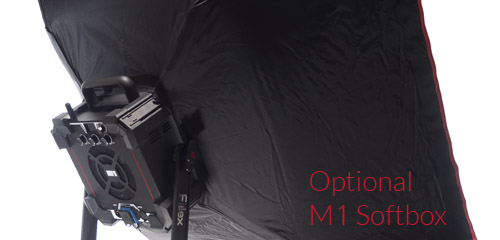

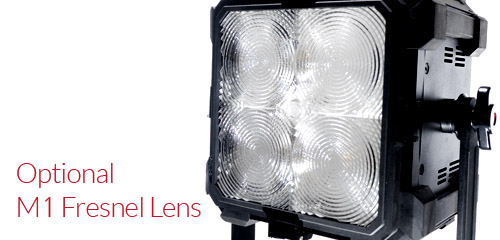

M1 Fresnel Lens M1 Softbox M1 Barndoor Grid for M1 Softbox
