Elation TVL 4000 II LED Panel

The new improved TVL 4000 II features a low heat, >90 CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs, 30 beam angle, as well as variable, manual, and DMX controlled colour temperature (3200K - 6500K) and dimming.

This fixture also features adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and power in connections, (4) button (2) dial LCD display control panel, 160W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).


  • Low Heat
  • >90 CRI
  • 30 Beam Angle
  • Variable Colour Temperature Settings (3200K - 6500K)
  • Adjustable Barn Doors
  • Magnetic Gel/Diffuser Holder
  • Manual and DMX Controlled Colour Temp and Dimming
  • Flicker Free Operation for Broadcast TV and FILM


800 x Warm White + 800 x Cool White LEDs

Photometric Data

1500 LUX 139 FC @ 6.6' (2M) (30 Warm White 3200K)
1900 LUX 177 FC @6.6' (2M) (30 Cool White 6500K)
3400 LUX 316 FC @6.6' (2M) (30 Full On 4500-5000K)


Variable Colour Temperature (3200K - 6500K)
Electronic Dimming (0% - 100%)

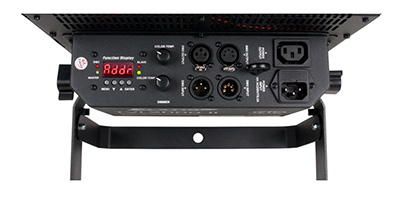

Control / Connections

  • (3) DMX Channel Modes (2/2/3)
  • Manual and DMX Colour Temperature and Dimming
  • (4) Button and (2) Dial Control Panel
  • LCD Menu Display
  • 3pin and 5pin DMX In/Out
  • Power In

Size / Weight

Length: 14.8" (376mm)
Width: 13.3" (337mm)
Vertical Height: 4.4" (113mm)
Weight: 15.0 lbs. (6.8 kg)

Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 160W Max Power Consumption
  • TA: 40C Max Ambient Temperature

Approvals / Ratings

  • CE Approved
  • cETLus Approved
  • RoHs Compliant


  • Rigging: Clamp or Stand (Not Included)
  • Working Position: Any (360)

Included Items

  • 180 Dual / Yoke Bracket
  • Power Cable

Price $1799.99
