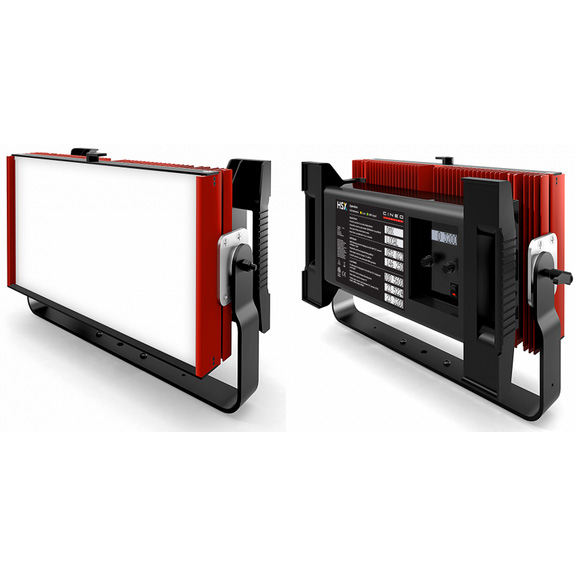

Cineo HSX

Cineo introduces HSX: a color-tunable soft source with the same powerful, accurate light output as the HS2 Remote Phosphor fixture.

Leveraging our years of experience in solid-state lighting and material sciences, Cineo has created a compact, 25,000 lumen fixture with the same beautiful color rendering and extended deep-red spectrum as their Remote Phosphor fixtures. Unlike other color-tunable sources, HSX remains consistent throughout the life of the fixture with no color shift or need for calibration.

The Cineo team was first to create a high-power LED studio fixture with the quality that motion picture and television professionals demand. Cineo fixtures continue to be the color-accurate LED lighting standard for image capture worldwide.

HSX Features

  • Optimized output for film, video, and still photography
  • Maximum output: 25,000 lumens
  • Colour tuning range: 2700K to 6000K
  • Presets at 2700K, 3200K, 4300K, 5600K, and 6000K
  • Output Control: 0-100% with local control, DMX and RDM support
  • Flicker-free operation
  • Colour shift: 0% over full dimming range
  • 3 SDCM variation over 50,000 hours
  • Silent, passive cooling: no fans
  • Simple, intuitive control interface
  • 100% compatible with HS accessories
  • Field serviceable components


HSX Specifications

Input voltage: 100-240 VAC 50/60 Hz
Power consumption: 400 watts, max
Fixture weight: 25 lbs, complete
Dimensions: 12" H x 21" W x 8.5" D
(290mm x 532mm x 216mm)
Lamp Life: 35,000 L70 rated
Environmental temperature range: -20 to +50C
Max. temperature rise: +45C
Warranty: 2 year parts and labour
Certifications: ETL and cETL Listed
CE & ROHS Compliant
Zero UV light emitted
Made in USA

HSX Output

CCT FC @ 10' LUX @ 3m
2700K-6000K 95 1025

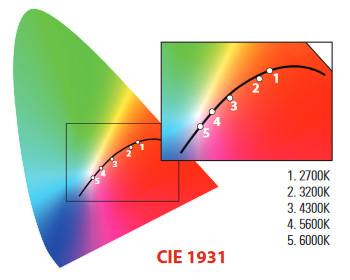

Colour Quality



Black Body Curve



Download HSX Cut Sheet

Download HSX Catalogue

Price List

Part Number Describtion USD List Price
Kits
800.0015 Cineo HSX Color-tunable fixture.
Includes integrated lamphead/power supply,
6' IEC to Edison power cord, yoke, TVMP.
$3,995.00
Light Control
900.0019 HS louver 90, Black anodized aluminum $250.00
902.0011 HS Snapgrid 90, Black soft fabric $250.00
900.0017 HS Eggcrate 60, Black anodized aluminum $250.00
900.0020 HS Gel frame, Black anodized aluminum $80.00
900.0021 HS 4-leaf barn door, Black anodized aluminum $350.00
902.0016 HS Chimera kit, Large (36" x 48") $695.00
902.0015 HS Chimera kit, Small (24" x 32") $435.00
902.2322 Snapgrid for Small Chimera Box $350.00
902.2323 Snapgrid for Medium Chimera Box $525.00
900.0099 SPACE Skirt and Target $395.00
902.0102 Snapbag for Cineo HS Light, 1m x 1m w/ speedring bag $825.00
902.2324 Snapgrid Insert for HS Snapbag $756.00
Conversion Kits
900.0066 HS Pole-op yoke, yoke no hardware (requires 900.0069) $495.00
900.0069 HS/LS Pole-op hardware mounting kit, no yoke $50.00

Price $See Above

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
Email: norm.hussey@sourceshop.com
We are not limited to the products on this site. Please call or email us and we'll do our best to locate your product.
