Elation DW Fresnel LED Fixture
The new DW Fresnel features a 250W 100,000 hour average life dynamic LED engine, 13° to 41° manual
zoom, variable colour temperature settings (3,200K - 6,000K), no noise thermo-optical cooling, manual and
DMX controlled strobe and dimmer, variable dimming curves, flicker free operation for TV and FILM,
rotating barn door and gel grame with frost filter, 3 and 5 pin in/out DMX and powerCON in connections,
(4) button (3) dial control panel, 320W max power consumption, and a multi-voltage universal auto
switching power supply (100-240v).
- 13° - 41° Manual Zoom
- Variable Colour Temperature (3,200 - 6,000K)
- No Noise Thermo-Optical Cooling Technology
- Manual and DMX Controlled Colour Temp and Dimming
- Flicker FREE Operation for TV and FILM
- Rotating Barn Door, Gel Frame and Frost Filter
- 250W Dynamic White LED Engine
- 100,000 Hour Average Life

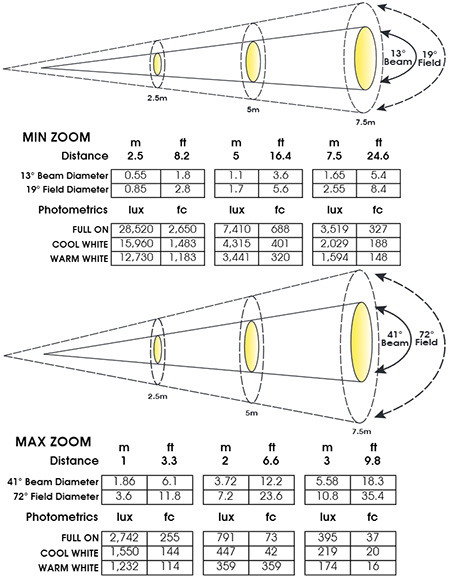

- Lens Dia: 7" (175mm) HIGH CRI = >90 / up to 8,716 lm
- 28,520 LUX 2650 FC @8.2' (2.5M) (13° Full On 4,800K)
- 2,742 LUX 255 FC @8.2' (2.5M) (41° Full On 4,800K)
- Variable Strobe Settings (1-18 fps)
- Electronic Dimming (0% - 100%)
- Variable Dimming Curves

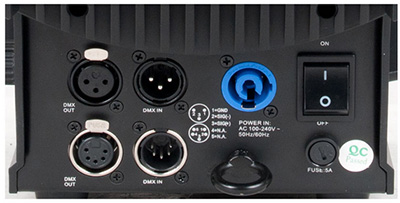

Control / Connections

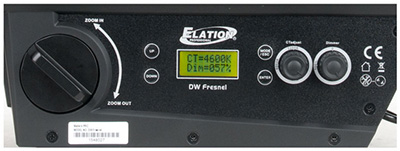

- (4) Button and (3) Dial Control Panel LCD Menu Display
- Manual or DMX Controlled Colour Temp and Dimming
- 3 DMX Channels Modes (2 / 3 / 8)
- 3 and 5 pin DMX In/Out
- powerCON Power In

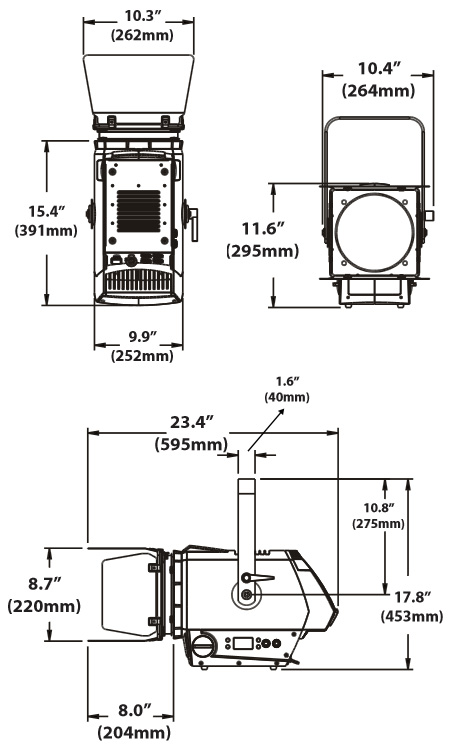

Size / Weight
- Length: 23.4" (595 mm)
- Width: 10.4" (264 mm)
- Height: 17.8" (453 mm)
- Weight: 24.0 lbs (10.9 kg)
Electrical / Thermal
- AC 100-240V - 50/60Hz
- 320W Max Power Consumption
- 14° to 113°F (-10° to 45°C)
Approvals / Ratings
- Rigging: Clamp or Stand (Not Included)
- Working Position: Any (360°)
- 1 x Rotating Barn Door, Gel Frame, and Frost Filter
- 1 x powerCON Cable
- 1 x 3pin XLR Cable
- 3 x Safety Cables
