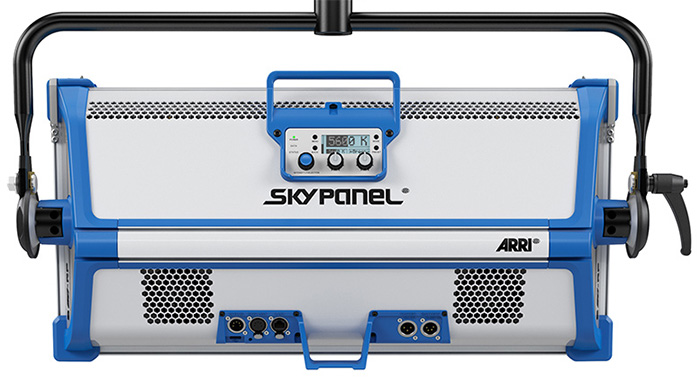

ARRI SkyPanel S60-RP

The S60 is a midrange model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications.

SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels.



Features

  • Interchangeable Remote Phosphor Panels (2700, 3200, 4300, 5600, 6500, 10,000 K & Chroma Green)
  • Ultra High Colour Rendering
  • Low Power Consumption (420 W Nominal)
  • Tremendous Output - Brighter than 2kW Tungsten Soft Light
  • Fully Dimmable from 0 - 100%
  • Lightweight and Compact
  • Beautiful Soft Beam of Light
  • Wide Range of Accessories Available
  • Thin Profile
  • Onboard Battery Connection (23 - 36V DC)
  • Onboard Simple Control Panel
  • Onboard DMX In and Out
  • RDM Implementation
  • USB-A Connection for Firmware Updates
  • EtherCon port for network connectivity
  • Available in Blue/Silver and Black
  • Fan Mode Selection
  • External Lightweight PSU
  • powerCON TRUE1 Power Connector


Technical Specifications

Lamphead
Optical System Remote Phosphor Panel
Light Aperture 645 x 300 mm (25.4 x 11.8 inches)
Beam Angle 115 (Half Peak Angle)
Weight: Manual Version: 11.7 kg (25.8 lbs)
Pole Op Version: 12.8 kg (28.1 lbs)
Handling Steel Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting 28 mm Spigot (Junior Pin)
Tilt Angle +/- 90
Lamphead Voltage Input 48 V DC
Power Consumption 410 W Nominal, 420 W Maximum
Lamphead Power Connection Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 - 36 V DC
Battery Mode Light Output 50% of Total Output
White Light Changeable Remote Phosphors Panels: 2700K, 3200K, 4300K, 5600K, 6500K, 10000K & Chroma Green
Coloured Light N/A
Colour Temperature Tolerance 4 - 5 SDCM
Colour Rendition 2700K: CRI >98, TLCI >98
3200K: CRI >98, TLCI >98
4300K: CRI >97, TLCI >96
5600K: CRI >97, TLCI >96
6500K: CRI >96, TLCI >94
10000K: CRI >92, TLCI >88
Green-Magenta Adjustment N/A
Dimming 0 - 100% Continuous
Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A
Remote Device Management (RDM) DMX Setup, Hour Counter and Standard RDM Commands
Software Interface Ethernet: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac USB-A: Software upgrade via flash drive
Housing Colour Blue/Silver, Black
Ambient Temperature Operation -20 - 45C (-4 - 113F)
Protection Class IP 20
Estimated LED Lifetime (L70) 50,000 hours
Estimated Colour Shift Over Lifetime +/- 5% K
Certifications CE, FCC; GS, cNRTL, CB


Power Supply Unit
Power Supply Input Range 110 - 240 V AC, 50/60 Hz
Power Supply Output Range 48 V DC
Power Input Connection powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)
Power Output Connection Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight 3.5 kg (7.7 lbs)
Dimensions 383 x 192 x 90 mm (15 x 7.6 x 3.5 inch)
Control Onboard On/Off Switch
Mounting Super Clamp Attachment / SkyPanel PSU Rail Mount


Accessories

Remote Phosphor
Description Part Number USD List Price
Remote Phosphor Panels S60-RP
Remote phosphor panels for the S60-RP are available in six colour temperature versions with excellent colour rendition. There is also a chroma green version for lighting green screens available.

  • Excellent Colour Rendition
  • Produces a homogeneous and soft beam of light
L2.0003347 Remote Phosphor Panel S60 - 2700K - CRI 98
L2.0003348 - 3200K
L2.0003349 - 4300K
L2.0003350 - 5600K
L2.0003346 - 6500K
L2.0007778 - 10,000K
L2.0003351 - Chroma Green
$1,000.00
$1,000.00
$1,000.00
$1,000.00
$1,000.00
$1,000.00
$1,770.00
Light Control
SkyBender S60
The SkyBender produces a uniform intensity light field over the length of any surface, transforming the beam by simply sliding into the front of the fixture. This is the perfect accessory for lighting a green screen, creating color wall washes, lighting a translight or backdrop, or evenly lighting a cyclorama.

  • Additional Versatility
  • +/- 1/6 F-Stop Uniformity
  • Smooth & Even Distribution
  • Lightweight design
  • Slides into the primary accessory slot
L2.0009611 $960.00
4-leaf Barndoor S60
The 4-leaf barndoor for the S60 allows for control of light spill and narrowing of the beam angle. Additional small flaps protect against light leak between the lamphead and the barndoors.

  • Lightweight and Rugged Design
  • Two safety hooks to hold the barndoor in place
  • 4-Leaf design with light leak flaps
  • Slides into outer accessory slot allowing for changing of diffusion panels without the removal of the barndoors
L2.0007530 $270.00
8-Chamber Eggcrate S60
This 8-chamber eggcrate is 130 mm thick (5.1 inches) and controls light by limiting the half peak angle to 60.

  • 8 Chambers design allows for minimal light loss
  • 130 mm (5.1 inches) thick
  • 60 HPA
  • Rugged design
  • Extra accessory slot for stacking other SkyPanel accessories
  • Slides into the primary accessory slot
L2.0007977 $160.00
Honeycomb 60 S60
The 60 Honeycomb for the S60 controls the light by reducing the beam angle to approx. 60.

  • Honeycomb design reduces multiple shadows
  • 14 mm (0.6 inches) thick
  • ~60 HPA
  • Slides into the primary accessory slot
L2.0008058 $340.00
Honeycomb 30 S60
The 30 Honeycomb for the S60 controls the light by reducing the beam angle to approx. 30.

  • Honeycomb design reduces multiple shadows
  • 14 mm (0.6 inches) thick
  • ~30 HPA
  • Slides into the primary accessory slot
L2.0008059 $340.00
Snoot S60
This S60 snoot is 130 mm thick (5.1 inches) and controls light, not allowing spill light from the sides of the lamphead.

  • Straight wall snoot with one large chamber
  • 130 mm (5.1 inches) thick
  • Rugged design
  • Extra accessory slot for stacking other SkyPanel accessories
  • Slides into the primary accessory slot
L2.0007999 $130.00
Extra Diffusion Slot S60
The S60 Extra Diffusion Slot slides into the primary accessory slot of the SkyPanel and allows for stacking for multiple diffusors.

  • Fits all SkyPanel S60 Diffusors
  • Top safety latch
  • Thin profile
  • Slides into the primary accessory slot or the front of the SkyPanel Snoot or Egg Crate
  • Extra accessory slot for stacking other SkyPanel accessories
L2.0008188 $90.00
Lightbanks
Chimera Lightbank with Frame S60
The Lightbank and Frame for the S60 by Chimera is a professional grade soft box that increases the light aperture of the SkyPanel by roughly 100%. The lightbank comes with several diffusions and folds away for storage. The frame slides directly into the SkyPanel accessory slot.

  • Specially made for SkyPanel S60
  • Professional Grade Construction
  • Medium Video Pro front
  • Includes: Lightbank, frame, and three diffusions
L2.0008197 $825.00
Chimera Shallow Lightbank with Frame S60
The Shallow Lightbank and Frame for the S60 by Chimera is a professional grade soft box that increases the light aperture of the SkyPanel by roughly 100%. This Shallow Lightbank does not take up as much space as the standard S60 lightbank. The lightbank comes with several diffusions and folds away for storage. The frame slides directly into the SkyPanel accessory slot.

  • Specially made for SkyPanel S60
  • Half as deep as standard lightbank
  • Internal baffle included
  • Professional Grade Construction
  • Medium Video Pro front
  • Includes: Lightbank, frame, and three diffusions
L2.0008195 $880.00
DoPchoice SnapGrid 40 for S60
The SnapGrid for the S60 by DoP Choice attaches directly to the front of the SkyPanel and provides for directional light control. The SnapGrid easily folds away for storage.

  • Specially made for SkyPanel S60
  • HPA: ~40
  • No Mounting Hardware Required
L2.0008144 $370.00
DoPchoice SnapBag for S60
The SnapBag for the S60 by DoP Choice attaches directly to the front of the SkyPanel and creates a largeraperture with beautiful soft light. The SnapBag easily folds away for storage.

  • Specially made for SkyPanel S60
  • Comes with 1/2 Grid Cloth Diffusion
  • No Mounting Hardware Required
L2.0008145 $560.00
DoPchoice SnapGrid 40 for SnapBag S60
The SnapGrid for the SnapBag by DoP Choice attaches to the front of the S60 SnapBag and provides directional light control. The SnapGrid easily folds away for storage.

  • Specially made for SkyPanel S60
  • HPA: ~40
  • No Mounting Hardware Required
L2.0008143 $440.00
Mounting
Center Mount Yoke
The Center Mount Yoke is a ball-in-socket yoke that allows for positioning the SkyPanel in almost any orientation including vertically. The Center Mount Yoke replaces the traditional stirrup and slides on to the rail mounting system located on the back of the SkyPanel.

  • Ball-in-socket design
  • 28 mm (Junior) Spigot with long "goose neck"
  • +/- 90 Movement
  • Tool-less attached to the rail mounting system on the SkyPanel
  • Works with both the S30 and S60
L2.0008078 $260.00
Fixed Center Mount Yoke
The Fixed Center Mount Yoke is a fixed 28 mm spigot that allows for direct attachment from the back of the SkyPanel to mounting hardware. The Fixed Center Mount Yoke replaces the traditional stirrup and slides on to the rail mounting system located on the back of the SkyPanel. Great for low ceilings or pointing the SkyPanel straight down or straight forward (i.e. a wall of SkyPanels).

  • 28 mm (Junior) Spigot
  • Tool-less attached to the rail mounting system on the SkyPanel
  • Works with both the S30 and S60
L2.0008080 $90.00
Double Vertical Yoke S60
  • High strength Aluminum yoke
  • Independent tilt of both lampheads
  • 28 mm (Junior) Spigot
  • High strength tilt locks
L2.0008098 $330.00
Battery Adapters
Battery Adapter Plate for Anton/Bauer
The Battery Adapter Plate for Anton/Bauer allows for the attachment of two Gold Mount style batteries to the SkyPanel. With a short cable, the battery adapter makes the SkyPanel truly mobile. Both batteries are required to supply the correct voltage to the lamphead.

  • Supports two Anton/Bauer Gold Mount Batteries (in series)
  • SkyPanel Quick Release System
  • On / Off switch
  • 4-pin XLR output
  • Includes 0.5 m and 3 m 4-Pin XLR
  • Battery Min. Recommendation: 14.4V, 100 Wh Capacity
L2.0008071 $371.00
V-Mount Battery Adapter Plate
The V-Mount Battery Adapter for SkyPanel allows for the attachment of two V-Mount style batteries to the SkyPanel. With a short cable, the battery adapter makes the SkyPanel truly mobile. Both batteries are required to supply the correct voltage to the lamphead.

  • Supports two V-Mount Batteries (in series)
  • SkyPanel Quick Release System
  • On / Off switch
  • 4-pin XLR output
  • Includes 0.5 m and 3 m 4-Pin XLR
  • Battery Min. Recommendation: 14.4V, 100 Wh Capacity
L2.0008070 $371.00
Cables
DC Cables (XLR) SkyPanel
The DC Cable connects the SkyPanel PSU to the SkyPanel lamphead.

  • 3-Pin XLR Female to 3-Pin XLR Male
  • Special SkyPanel 10 mm Diameter Cable
L2.0007492 0.5 m (1.6')
L2.0007491 1 m (3')
L2.0007493 3 m (10')
L2.0007494 10 m (33')
L2.0007860 15 m (49')

$35.00

$40.00

$70.00

$140.00

$200.00
Mains Cables, powerCON TRUE1
The Mains Cables connect the SkyPanel PSU to a mains power outlet (110 - 250 V AC - 50 / 60 Hz).

  • Length: 3 m (9.8 ft)
  • powerCON TRUE1 Connector
  • Mains Connector (Schuko, Edison, Chinese)
  • Insulated rubber cable H07RN-F 3G1,5,EN
  • Rubber insulated cable 3xAWG16, UL (Edison)
L2.0007515 Edison
L2.0005974 Bare Ends

$60.00

$60.00
PSU Attachments
Rail Mount Adapter for SkyPanel PSU
The Rail Mount Adapter attaches to the SkyPanel PSU (no tools required) and allows for the mounting of the PSU to the rail mount system on the back of the SkyPanel lamphead. If an all-inone system is required, this accessory will accomplish the task.

  • Attaches to SkyPanel PSU or Battery Adapter Plates
  • Tool-less system allows for quick attachment and release from the PSU
  • Slides onto rail mount system on the back of SkyPanel
L2.0008082 $40.00
Super Clamp Adapter for SkyPanel PSU
The Super Clamp Adapter attaches to the back of the SkyPanel PSU (no tools required) and allows for the mounting of the PSU to a wide variety of objects including light stand stems and truss.

  • Attaches to SkyPanel PSU or Battery Adapter Plates
  • Comes with Super Clamp for mounting to a variety of objects
  • Tool-less system allows for quick attachment and release from the PSU
L2.0006921 $70.00
Space Light
Space Light Silk Mounting Adapter S60
The Space Light Silk Mounting Adapter slides on to the spigot of the SkyPanel S60 and allows for the attachment of a standard 5K/6K space light silk and skirt. This simple system fit a wide variety of industry standard space light accessories.

  • Main collar slides on to 28mm Spigot of the SkyPanel S60
  • Three aircraft cables and carabineers allow for quick and easy attachment of industry standard space light accessories
  • Available hole for safety chain
L2.0008185 $100.00


Price List

Part Number Description USD List Price
L0.0007068 S60-RP 3200K, Manual, Blue/Silver, 10 (3m) Mains Cable with U-Ground (Edison) $4,500.00
L0.0007071 S60-RP 3200K, Pole Op, Blue/Silver, 10 (3m) Mains Cable with Bare Ends $4,500.00
L0.0007072 S60-RP 3200K, Pole Op, Black, 10 (3m) Mains Cable with Bare Ends $4,500.00
L0.0007073 S60-RP 5600K, Manual, Blue/Silver, 10 (3m) Mains Cable with U-Ground (Edison) $4,500.00
L0.0007076 S60-RP 5600K, Pole Op, Blue/Silver, 10 (3m) Mains Cable with Bare Ends $4,500.00
L0.0007077 S60-RP 5600K, Pole Op, Black, 10 (3m) Mains Cable with Bare Ends $4,500.00

Price $Call or Email for Quote

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
Email: norm.hussey@sourceshop.com
We are not limited to the products on this site. Please call or email us and we'll do our best to locate your product.
