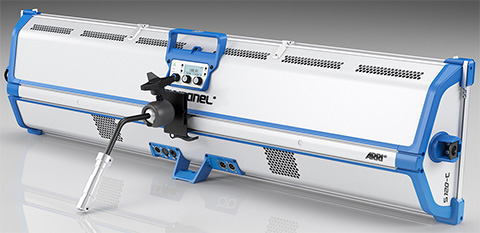

ARRI SkyPanel S120-C

The highly acclaimed ARRI SkyPanel series of LED soft lights is growing, with the new SkyPanel S120-C joining the S60 and S30 family of products.

The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. Retaining the same features and color tuneability as its smaller counterparts, the S120 consumes less than 400 watts, yet it is slightly brighter than the S60-C and has an outstanding efficacy of 90 lumens per watt.

A large surface area is a crucial feature of a good soft light. With an aperture of 1290 mm x 300 mm (50.8 x 11.8), the S120 outputs a beautifully soft, even beam of light that has a wide range of uses. The long aspect ratio wraps light around objects and is perfect for vertical lighting of people. In addition the S120 works well as an overhead light for large areas, with the increased dimensions meaning that fewer lights and less cables are required.

Released alongside the S120 are all the accessories needed for sculpting and controlling the light. Among the S120 accessories are honeycombs, eggcrates, barndoors, diffusion panels, the SkyBender and a new fabric barndoor called the FlexDoor. This wide range of accessories makes the S120 more versatile and easier to control.



Features

  • Fully Tuneable from 2,800 K - 10,000 K
  • Vibrant Color Selection (RGB+W Color Gamut)
  • High Color Rendering
  • Large Aperture (1290 x 300mm)
  • Perfect for Vertical Lighting
  • Low Power Consumption (400 W Nominal)
  • Tremendous Output - Brighter than 2kW Tungsten Soft Light
  • Fully Dimmable from 0 - 100%
  • Lightweight and Compact
  • Beautiful Soft Beam of Light
  • Interchangeable Diffusion Panels
  • Wide Range of Accessories Available
  • Thin Profile
  • On-Board Battery Connection (23 - 36V DC)
  • Onboard Simple Control Panel
  • Onboard DMX In and Out
  • RDM Implementation
  • USB-A Connection for Firmware Updates
  • EtherCon port for network connectivity
  • Available in Blue/Silver and Black
  • Fan Mode Selection
  • External Lightweight PSU
  • powerCON TRUE1 Power Connector


Technical Data

Lamphead S120-C
Optical System Soft Diffusion Panel
Light Aperture 1290 x 300 mm / (50.8 x 11.8 inches)
Beam Angle 110 (Half Peak Angle)
Weight Manual Version: 16 kg (35.3 lbs)
Center Mount: 14 kg (30.9 lbs)
Pole Op Version: 19.6 kg (43.2 lbs)
Handling Aluminum Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting 28 mm Spigot (Junior Pin)
Tilt Angle +/- 90
Lamphead Voltage Input 48 V =
Power Consumption 400 W Nominal, 430 W Maximum
Lamphead Power Connection Male 3-Pin XLR to 15 amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector Male 4-Pin XLR to 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 - 36 V =
Battery Mode Light Output 50% of Total Output
White Light 2,800K to 10,000 K continuously variable Correlated Colour Temperature
Coloured Light Full RBG+W colour gamut with Hue and Saturation control
Colour Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Colour Rendition CRI Average > 95
TLCI Average > 90
Green-Magenta Adjustment continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming 0 - 100% continuous
Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Remote Device Management (RDM*): *RDM Available in Future Firmware DMX Setup, Hour Counter and Standard RDM commands
Software Interface Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
Housing Colour Blue/Silver, Black
Ambient Temperature Operation -20 to +45 C (-4 to +113 F)
Protection Class IP 20
Estimated LED Lifetime (L70) 50,000 hours
Estimated Colour Shift Over Liftetime +/- 5%
Certifications CE, FCC; ENEC, cNRTLus, CB, PSE
Power Supply Unit S60/S120 PSU
Power Supply Input Range 110 to 240 V ~, 50/60 Hz
Power Supply Output Range 48 V =
Power Input Connection powerCON TRUE1 (Bare Ends / Schuko / Edison cables available)
Power Output Connection Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight 3.5 kg (7.7 lbs.)
Dimension 383 x 192 x 90 mm (15 x 7.6 x 3.5 inch)
Control On-Board On/Off Switch
Mounting Super Clamp Attachement / SkyPanel PSU Rail Mount

Price $Call or Email for Quote
