Zylight F8 Fresnel

The Fresnel light reimagined. The multiple award-winning F8 LED Fresnel from Zylight is the next generation of Fresnel lights.



By incorporating a special blend of Quantum nanoparticles with traditional phosphor the F8 boasts a CRI of 97+ and a quality of light matched only by traditional sunlight and incandescent bulbs, while using a fraction of the energy. All of the hallmarks of a traditional Fresnel light are present: single shadow beam shaping through barn doors, continuous focusing and a smooth light field. The Zylight F8 adds wireless and DMX control, water-resistant IP54 rating, and very rugged construction for field reliability. Available in both 3200K or 5600K colour temperature versions, the Zylight F8 is extremely compact, durable, and the most versatile Fresnel light ever built.

Field or Studio Friendly

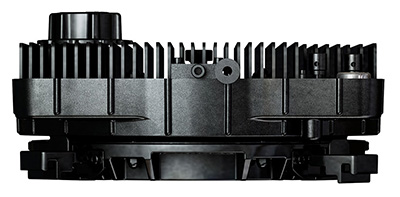

The Zylight F8 can be powered by both a worldwide AC power adapter or a standrad 14.4V camera battery for complete portability. Its thin design and shape allow it to pack into small cases and be taken anywhere. The water-resistant IP54 rating ensures the F8 will be comfortable in falling rain or snow and blowing dirt and dust. Whether shooting a stand-up in a hurricane or snow storm, the F8 will deliver bright light with ease. Try that with your traditional LED Fresnel. In the studio, all functionality of the Zylight F8 can be controlled via DMX or remotely via the built-in Zylink wireless link. Local control such as dimming, focus and wireless operation are provided on the rear of the F8. At 15" x 12" x 4" it will take up considerable less space in your grid than its traditional counterpart. The yoke mount allows for easy panning and tilting for quick focusing. The F8's silent operation means it can run in a studio setting without disruption of audio recording or talent distraction.

Ultra Bright Output

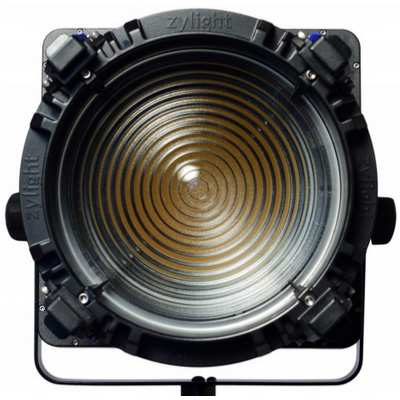

The F8's advanced ultra bright LED module ensures excellent skin tones and rich, accurate colour rendition. Continual focusing and an adjustable beam spread between 16-70 degrees allows for even coverage when shooting with wide-angle lenses or HD 16x9 format. The F8 uses a high quality glass 8" Fresnel lens and has an equivalent output of a traditional 650 watt instrument. Barn Doors, soft box, and other accessories will be available soon.





Features

  • Thin & Lightweight Design
  • High 97+ CRI
  • Water Resistant IP54 Rating
  • Continual Focus - Variable Spot - Flood
  • Completely Silent Operation
  • Single Shadow Beam Shaping
  • Fully Dimmable 100 - 0%
  • 3200K or 5600K Versions
  • DMX or Wireless Operation
  • Battery or Worldwide AC Power
  • Yoke Mount for Pan & Tilt
  • Sturdy, Durable Aluminum Construction
  • Made Production Tough in the USA


Benefits

  • Packs Small and Light
  • No Heat. No Noise.
  • Low Power Draw
  • No Spare Bulbs to Buy or Carry
  • Low Maintenance Cost & Downtime
  • Very Portable. Use it Anywhere!
  • Water Resistant
  • Extremely Versatile Light




Specifications

Optical Dimension 8" Round traditional Schott glass Fresnel lens (203mm)
Size 15" x 12.6" x 4.6"
(382mm x 319mm x 97mm)
Weight 9 lbs (4.3 kg) w/ Yoke
Power Requirement 10-20 VDC
Energy Consumption 100W max. (8.0A @ 14VDC)
Power Input Plug XLR 4-Pin
AC Power Supply 120 - 240V AC, 50/60 Hz
Colour Temperature Fixed F8-T (3200K) #26-01019, F8-D (5600K) #26-01025
CRI Index F8-T (3200K) up to 97 CRI, F8-D (5600K) up to 95 CRI
Beam Angle 16 - 70, Variable Spot-Flood
Method of Focus Rear knob. Continuously variable. No modifying lenses needed
Intensity See Photometrics below
Dimming 0-100% (13-100% using ZyLink Remote)
Cooling Passive/Silent
Operating Range -20 to 40 C
Electrical Option Worldwide AC power supply, 14.4VDC (8 AMP) camera battery powering (V-Mount, Gold Mount)
Mounting Manual yoke, 5/8" Female spigot, Pole yoke (#26-02014),
Handle Kit (19-02041)
Wireless Frequency 2.45 GHz
Wireless Channels 9, User Selectable
Assembly Materials Machined aluminum and high impact plastic
Calibration Factory
IP Rating 54
Variable Refresh Rate (PVM) 11.8 KHz
LED Life 50,000 hrs. min. (quantum dot powered)
Flicker Free up to 5,600 fps tested (Full brightness)
DMX Channels CH1 - On/Off, CH2 - Brightness (0-100%)


Photometrics

Footcandles

Distance 3.3 FT (1 M) 6.6 FT (2 M) 16.4 FT (5 M) 19.7 FT (6 M)
F8-D Flood 590 fc 150 fc 23 fc 17 fc
F8-D Spot 2700 fc 1021 fc 180 fc 120 fc
F8-T Flood 250 fc 86 fc 15 fc 11 fc
F8-T Spot 2350 fc 920 fc 150 fc 98 fc


Lux

Distance: 3.3 FT (1 M) 6.6 FT (2 M) 16.4 FT (5 M) 19.7 FT (6 M)
F8-D Flood 6300 lux 1600 lux 240 lux 180 lux
F8-D Spot 29000 lux 11000 lux 1900 lux 1300 lux
F8-T Flood 3440 lux 926 lux 161 lux 118 lux
F8-T Spot 25900 lux 9200 lux 1780 lux 1110 lux


DMX Assignments

Channel Function Values
1 Power OFF = 0 - 49%; ON = 50 - 100%
2 Brightness 0 - 200%


Kit Options

Part Number Product Name Product Description Price
26-01020 F8-D LED Fresnel (5600K) Includes: F8 LED Fresnel Light-Daylight balanced, F8 Worldwide Power Adapter, AC Adapter Bag, Barn Doors, User Guide $2,400.00
26-01026 F8-D Single Head ENG Kit (Gold Mount) Includes: F8 LED Fresnel Light-Daylight balanced, F8 Worldwide Power Adapter, AC Adapter Bag, Barn Doors, F8 Gold Mount Battery Kit, F8 Filter Kit, F8 Single Head Case, User Guide $2,850.00
26-01027 F8-D Single Head ENG Kit (V-Mount) Includes: F8 LED Fresnel Light-Daylight balanced, F8 Worldwide Power Adapter, AC Adapter Bag, Barn Doors, F8 V-Mount Battery Kit, F8 Filter Kit, F8 Single Head Case, User Guide $2,850.00
26-01025 F8-D LED Fresnel Dual Head Kit (5600K) Includes: (2) F8-D LED Fresnel Light-Daylight balanced, (2) F8 Worldwide Power Adapters, (2) AC Adapter Bags, (2) Barn Doors, User Guide $4,750.00
26-01029 F8-D Dual Head ENG Kit (Gold Mount) Includes: (2) F8 LED Fresnel Light-Daylight balanced, (2) F8 Worldwide Power Adapters, (2) Barn Doors, (2) F8 Gold Mount Battery Kits, (2) F8 Filter Kits, F8 Dual Head Case, User Guide $5,500.00
26-01030 F8-D Dual Head ENG Kit (V-Mount) Includes: (2) F8 LED Fresnel Light-Daylight balanced, (2) F8 Worldwide Power Adapters, (2) AC Adapter Bags, (2) Barn Doors, (2) F8 V-Mount Battery Kits, (2) F8 Filter Kits, F8 Dual Head Case, User Guide $5,500.00
26-01019 F8-T LED Fresnel (3200K) Includes: F8 LED Fresnel Light-Tungsten balanced, F8 Worldwide Power Adapter, AC Adapter Bag, Barn Doors, User Guide $2,400.00
26-01028 F8-T LED Fresnel Dual Head Kit (3200K) Includes: (2) F8-T LED Fresnel Light-Tungsten balanced, (2) F8 Worldwide Power Adapters, (2) AC Adapter Bags, (2) Barn Doors, User Guide $4,750.00

Price $See Above

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
