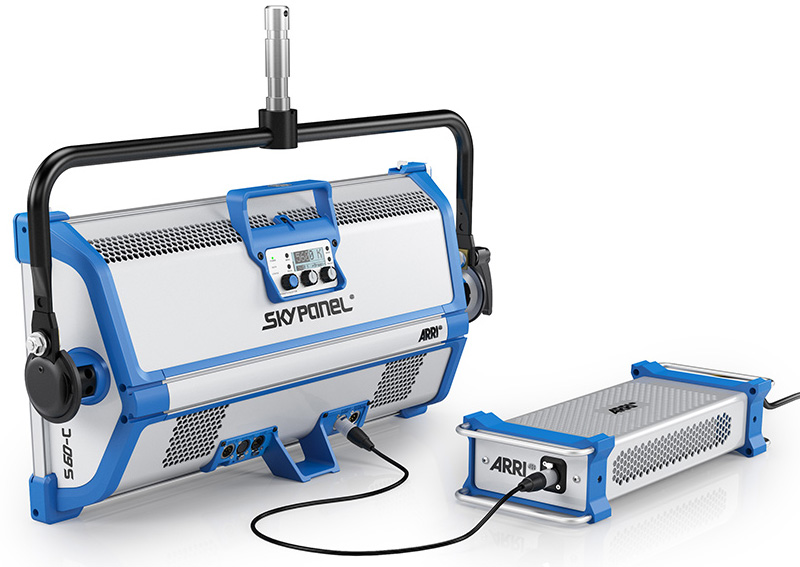

| Lamphead |
| Optical System |
Soft Diffusion Panel |
| Light Aperture |
645 x 300 mm / (25.4 x 11.8 inches) |
| Beam Angle |
115º (Half Peak Angle) |
| Weight |
Manual Version: 11.7 kg (25.8 lbs)
Pole Op Version: 12.8 kg (28.1 lbs) |
| Handling |
Steel Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt) |
| Mounting |
28mm Spigot (Junior Pin) |
| Tilt Angle |
+/- 90º |
| Lamphead Voltage Input |
48 V DC |
| Power Consumption |
420 W Nominal, 450 W Maximum |
| Lamphead Power Connection |
Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive) |
| Battery Connector |
Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) |
| Battery DC Voltage Range |
23 - 36 V DC |
| Battery Mode Light Output |
50% of Total Output |
| White Light |
2800K - 10000K Continuously Variable Correlated Color Temperature |
| Coloured Light |
Full RBG+W Color Gamut with Hue and Saturation Control |
| Colour Temperature Tolerance |
+/-100K (nominal), +/-1/8 Green-Magenta (nominal) |
| Colour Rendition |
CRI Average > 95
TLCI Average > 90 |
| Green-Magenta Adjustment |
Continuously Adjustable (Full Minusgreen to Full Plusgreen) |
| Dimming |
0 - 100% Continuous |
| Control |
Onboard Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A |
| Remote Device Management (RDM) |
DMX Setup, Hour Counter and Standard RDM Commands |
| Software Interface |
Ethernet: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac USB-A: Software
upgrade via flash drive |
| Housing Colour |
Blue/Silver, Black |
| Ambient Temperature Operation |
-20 - 45ºC (-4 - 113ºF) |
| Protection Class |
IP 20 |
| Estimated LED Lifetime (L70) |
50,000 hours |
| Estimated Colour Shift Over Lifetime |
+/- 5% K |
| Certifications |
CE, FCC; GS, cNRTL, CB |
Power Supply Unit |
| Power Supply Input Range |
110-240 V AC, 50/60 Hz |
| Power Supply Output Range |
48 V DC |
| Power Input Connection |
powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available) |
| Power Output Connection |
Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through) |
| Weight |
3.5 kg (7.7 lbs) |
| Dimension |
383 x 192 x 90 mm (15 x 7.6 x 3.5 inch) |
| Control |
Onboard On/Off Switch |
| Mounting |
Super Clamp Attachement / SkyPanel PSU Rail Mount |
| Diffusion |
|
Description
| Part Number |
USD List Price |
 |
Diffusion S60
SkyPanel Lite, Standard and Heavy Diffusion panels have been developed to work perfectly with the
S60-C models. Standard Diffusion panel offers medium diffusion and produces optimal light output and
beam quality. The Lite Diffusion is less diffuse and therefore allows more light to pass through, while the
Heavy Diffusion is more diffuse and allows less light through, but provides a softer beam quality.
- Produces homogeneous beam of light with great output
- Plastic diffusion material and rugged metal frame
|
L2.0003904 Lite Diffusion
L2.0003345 Standard Diffusion
L2.0003903 Heavy Diffusion |
$140.00
$140.00
$140.00 |
Light Control |
 |
SkyBender S60
The SkyBender produces a uniform intensity light field over the length of any surface, transforming the
beam by simply sliding into the front of the fixture. This is the perfect accessory for lighting a green
screen, creating color wall washes, lighting a translight or backdrop, or evenly lighting a cyclorama.
- Additional Versatility
- +/- 1/6 F-Stop Uniformity
- Smooth & Even Distribution
- Lightweight design
- Slides into the primary accessory slot
|
L2.0009611 |
$960.00 |
 |
Intensifier S60
This intensifier panel for SkyPanel S60-C increases light output by up to 50% while maintaining a soft,
even beam of light. The increase in output is achieved by capturing some of the light going off to the
side and refocusing it in a more forward direction. Light output in the center is thereby intensified and
yet the quality of the light is retained.
- Increased output up to 50%
- Maintains homogenous, soft beam of light
|
L2.0007818 |
$340.00 |
 |
4-leaf Barndoor S60
The 4-leaf barndoor for the S60 allows for control of light spill and narrowing of the beam angle.
Additional small flaps protect against light leak between the lamphead and the barndoors.
- Lightweight and Rugged Design
- Two safety hooks to hold the barndoor in place
- 4-Leaf design with light leak flaps
- Slides into outer accessory slot allowing for changing of diffusion panels without the removal of the barndoors
|
L2.0007530 |
$270.00 |
 |
8-Chamber Eggcrate S60
This 8-chamber eggcrate is 130 mm thick (5.1 inches) and controls light by limiting the half peak angle to 60º.
- 8 Chambers design allows for minimal light loss
- 130 mm (5.1 inches) thick
- 60º HPA
- Rugged design
- Extra accessory slot for stacking other SkyPanel accessories
- Slides into the primary accessory slot
|
L2.0007977 |
$160.00 |
 |
Honeycomb 60º S60
The 60º Honeycomb for the S60 controls the light by reducing the beam angle to approx. 60º.
- Honeycomb design reduces multiple shadows
-
- 14 mm (0.6 inches) thick
- ~60º HPA
- Slides into the primary accessory slot
|
L2.0008058 |
$340.00 |
 |
Honeycomb 30º S60
The 30º Honeycomb for the S60 controls the light by reducing the beam angle to approx. 30º.
- Honeycomb design reduces multiple shadows
- 14 mm (0.6 inches) thick
- ~30º HPA
- Slides into the primary accessory slot
|
L2.0008059 |
$340.00 |
 |
Snoot S60
This S60 snoot is 130 mm thick (5.1 inches) and controls light, not allowing spill light from the sides of the
lamphead.
- Straight wall snoot with one large chamber
- 130 mm (5.1 inches) thick
- Rugged design
- Extra accessory slot for stacking other SkyPanel accessories
- Slides into the primary accessory slot
|
L2.0007999 |
$130.00 |
 |
Extra Diffusion Slot S60
The S60 Extra Diffusion Slot slides into the primary accessory slot of the SkyPanel and allows for stacking
for multiple diffusors.
- Fits all SkyPanel S60 Diffusors
- Top safety latch
- Thin profile
- Slides into the primary accessory slot or the front of the SkyPanel Snoot or Egg Crate
- Extra accessory slot for stacking other SkyPanel accessories
|
L2.0008188 |
$90.00 |
Lightbanks |
 |
Chimera Lightbank with Frame S60
The Lightbank and Frame for the S60 by Chimera is a professional grade soft box that increases the light
aperture of the SkyPanel by roughly 100%. The lightbank comes with several diffusions and folds away
for storage. The frame slides directly into the SkyPanel accessory slot.
- Specially made for SkyPanel S60
- Professional Grade Construction
- Medium Video Pro front
- Includes: Lightbank, frame, and three diffusions
|
L2.0008197 |
$825.00 |
 |
Chimera Shallow Lightbank with Frame S60
The Shallow Lightbank and Frame for the S60 by Chimera is a professional grade soft box that increases
the light aperture of the SkyPanel by roughly 100%. This Shallow Lightbank does not take up as much
space as the standard S60 lightbank. The lightbank comes with several diffusions and folds away for
storage. The frame slides directly into the SkyPanel accessory slot.
- Specially made for SkyPanel S60
- Half as deep as standard lightbank
- Internal baffle included
- Professional Grade Construction
- Medium Video Pro front
- Includes: Lightbank, frame, and three diffusions
|
L2.0008195 |
$880.00 |
 |
DoPchoice SnapGrid 40º for S60
The SnapGrid for the S60 by DoP Choice attaches directly to the front of the SkyPanel and provides
for directional light control. The SnapGrid easily folds away for storage.
- Specially made for SkyPanel S60
- HPA: ~40º
- No Mounting Hardware Required
|
L2.0008144 |
$370.00 |
 |
DoPchoice SnapBag for S60
The SnapBag for the S60 by DoP Choice attaches directly to the front of the SkyPanel and creates a
largeraperture with beautiful soft light. The SnapBag easily folds away for storage.
- Specially made for SkyPanel S60
- Comes with 1/2 Grid Cloth Diffusion
- No Mounting Hardware Required
|
L2.0008145 |
$560.00 |
 |
DoPchoice SnapGrid 40º for SnapBag S60
The SnapGrid for the SnapBag by DoP Choice attaches to the front of the S60 SnapBag and provides
directional light control. The SnapGrid easily folds away for storage.
- Specially made for SkyPanel S60
- HPA: ~40º
- No Mounting Hardware Required
|
L2.0008143 |
$440.00 |
Mounting |
 |
Center Mount Yoke
The Center Mount Yoke is a ball-in-socket yoke that allows for positioning the SkyPanel in almost any
orientation including vertically. The Center Mount Yoke replaces the traditional stirrup and slides on to
the rail mounting system located on the back of the SkyPanel.
- Ball-in-socket design
- 28 mm (Junior) Spigot with long "goose neck"
- +/- 90º Movement
- Tool-less attached to the rail mounting system on the SkyPanel
- Works with both the S30 and S60
|
L2.0008078 |
$260.00 |
 |
Fixed Center Mount Yoke
The Fixed Center Mount Yoke is a fixed 28 mm spigot that allows for direct attachment from the back of
the SkyPanel to mounting hardware. The Fixed Center Mount Yoke replaces the traditional stirrup and
slides on to the rail mounting system located on the back of the SkyPanel. Great for low ceilings or
pointing the SkyPanel straight down or straight forward (i.e. a wall of SkyPanels).
- 28 mm (Junior) Spigot
- Tool-less attached to the rail mounting system on the SkyPanel
- Works with both the S30 and S60
|
L2.0008080 |
$90.00 |
 |
Double Vertical Yoke S60
- High strength Aluminum yoke
- Independent tilt of both lampheads
- 28 mm (Junior) Spigot
- High strength tilt locks
|
L2.0008098 |
$330.00 |
Battery Adapters |
 |
Battery Adapter Plate for Anton/Bauer
The Battery Adapter Plate for Anton/Bauer allows for the attachment of two Gold Mount style batteries
to the SkyPanel. With a short cable, the battery adapter makes the SkyPanel truly mobile. Both batteries
are required to supply the correct voltage to the lamphead.
- Supports two Anton/Bauer Gold Mount Batteries (in series)
- SkyPanel Quick Release System
- On / Off switch
- 4-pin XLR output
- Includes 0.5 m and 3 m 4-Pin XLR
- Battery Min. Recommendation: 14.4V, 100 Wh Capacity
|
L2.0008071 |
$371.00 |
 |
V-Mount Battery Adapter Plate
The V-Mount Battery Adapter for SkyPanel allows for the attachment of two V-Mount style batteries to
the SkyPanel. With a short cable, the battery adapter makes the SkyPanel truly mobile. Both batteries
are required to supply the correct voltage to the lamphead.
- Supports two V-Mount Batteries (in series)
- SkyPanel Quick Release System
- On / Off switch
- 4-pin XLR output
- Includes 0.5 m and 3 m 4-Pin XLR
- Battery Min. Recommendation: 14.4V, 100 Wh Capacity
|
L2.0008070 |
$371.00 |
Cables |
 |
DC Cables (XLR) SkyPanel
The DC Cable connects the SkyPanel PSU to the SkyPanel lamphead.
- 3-Pin XLR Female to 3-Pin XLR Male
- Special SkyPanel 10 mm Diameter Cable
|
L2.0007492 0.5 m (1.6')
L2.0007491 1 m (3')
L2.0007493 3 m (10')
L2.0007494 10 m (33')
L2.0007860 15 m (49') |
$35.00
$40.00
$70.00
$140.00
$200.00 |
 |
Mains Cables, powerCON TRUE1
The Mains Cables connect the SkyPanel PSU to a mains power outlet (110 - 250 V AC - 50 / 60 Hz).
- Length: 3 m (9.8 ft)
- powerCON TRUE1 Connector
- Mains Connector (Schuko, Edison, Chinese)
- Insulated rubber cable H07RN-F 3G1,5,EN
- Rubber insulated cable 3xAWG16, UL (Edison)
|
L2.0007515 Edison
L2.0005974 Bare Ends |
$60.00
$60.00 |
PSU Attachments |
 |
Rail Mount Adapter for SkyPanel PSU
The Rail Mount Adapter attaches to the SkyPanel PSU (no tools required) and allows for the mounting of
the PSU to the rail mount system on the back of the SkyPanel lamphead. If an all-inone system is required,
this accessory will accomplish the task.
- Attaches to SkyPanel PSU or Battery Adapter Plates
- Tool-less system allows for quick attachment and release from the PSU
- Slides onto rail mount system on the back of SkyPanel
|
L2.0008082 |
$40.00 |
 |
Super Clamp Adapter for SkyPanel PSU
The Super Clamp Adapter attaches to the back of the SkyPanel PSU (no tools required) and allows for
the mounting of the PSU to a wide variety of objects including light stand stems and truss.
- Attaches to SkyPanel PSU or Battery Adapter Plates
- Comes with Super Clamp for mounting to a variety of objects
- Tool-less system allows for quick attachment and release from the PSU
|
L2.0006921 |
$70.00 |
Space Light |
 |
Space Light Silk Mounting Adapter S60
The Space Light Silk Mounting Adapter slides on to the spigot of the SkyPanel S60 and allows for the
attachment of a standard 5K/6K space light silk and skirt. This simple system fit a wide variety of industry
standard space light accessories.
- Main collar slides on to 28mm Spigot of the SkyPanel S60
- Three aircraft cables and carabineers allow for quick and easy attachment of industry standard space light accessories
- Available hole for safety chain
|
L2.0008185 |
$100.00 |
