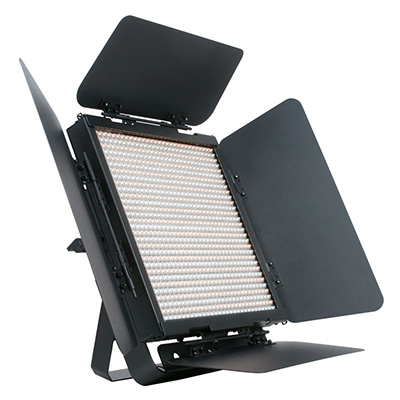

Elation TVL 2000 II LED Fixture

The new improved TVL2000 II features a low heat high CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs, variable manual and DMX controlled colour temperature (3200K - 6500K) and dimming, adjustable barn doors, built-in magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and linkable power in/out connections, (4) button (2) dial LCD display control panel, 90W max power consumption, and a multi-voltage universal auto switching power supply (100-240V).

• Low Heat High CRI Dynamic LED Array Panel
• Variable Colour Temperature Settings (3200K - 6500K)
• Adjustable Barn Doors
• Built-In Magnetic Gel/Diffuser Holder
• Manual and DMX Controlled Colour Temp and Dimming
• Flicker Free Operation for Broadcast TV and FILM
• Multiple Unit Power Linking




Source

• (450) Warm White + (450) Cool White LEDs




Photometric Data

• 750 LUX 70 FC @ 6.6' (2M) (30° Warm White 3200K)
• 1300 LUX 121 FC @ 6.6' (2M) (30° Cool White 6500K)
• 2000 LUX 186 FC @ 6.6' (2M) (30° Full On 4500-5000K)




Effects

• Variable Colour Temperature (3200K - 6500K)
• Electronic Dimming (0% - 100%)




Control / Connections

• (3) DMX Channel Modes (2/2/3)
• Manual and DMX Colour Temperature and Dimming

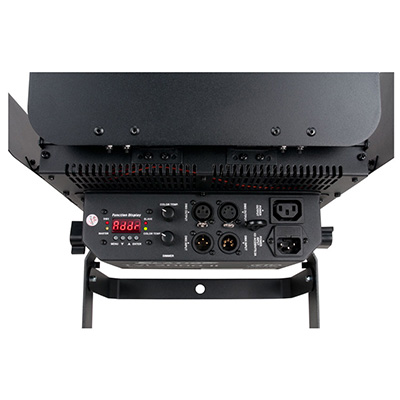

• (4) Button and (2) Dial Control Panel
• LCD Menu Display
• 3pin and 5pin DMX In/Out
• Linkable Power In/Out

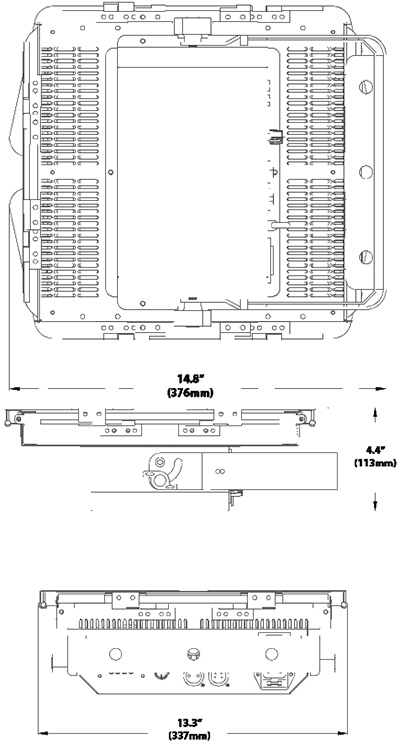

Size / Weight

• Length: 14.8" (376mm)
• Width: 13.3" (337mm)
• Vertical Height: 4.4" (113mm)
• Weight: 15.0 lbs (6.8 kg)






Electrical / Thermal

• AC 100-240V - 50/60Hz
• 90W Max Power Consumption




Approvals / Ratings

• CE Approved
• cETLus Approved
• RoHs Compliant
• IP20 Rated




Installation

• Rigging: Clamp or Stand (Not Included)
• Working Position: Any (360°)




Included Items

• 90° Dual / Yoke Bracket
• Power Cable




Price $839.99
