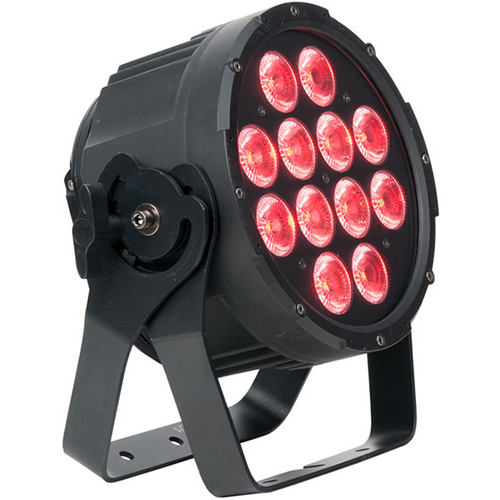

Elation SIXPAR 200IP LED
The new IP65 rated SIXPAR 200IP features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour
LED life, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming
curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management),
rugged die-cast aluminum exterior, flicker-free operation for TV and FILM, 150W max power consumption,
and a multi-voltage universal auto switching power supply (110-250v).
Features
- IP65 Rated
- 15° Beam 25° Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM - Remote Device
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Source
- (12) 12W 6-in-1 RGBAW+UV LEDs
- 100,000 Hour Average LED Life
Photometric Data (15° Full ON)
| Output |
Distance |
| 22,250 LUX (2,067 FC)
| 1 m (3.3') |
| 5,600 LUX (520 FC) |
2 m (6.6') |
| 2,500 LUX (232 FC) |
3 m (9.8') |
| 1,360 LUX (126 FC) |
4 m (13.1') |
| 930 LUX (86 FC) |
5 m (16.5') |
Effects
- Electronic Strobe
- Colour and Chase Macros
- Electronic Dimming: 0% - 100%
- 5 Variable Dimming Curve Modes
Control / Connections
- (4) DMX Channel Modes (6 / 7 / 8 / 12)

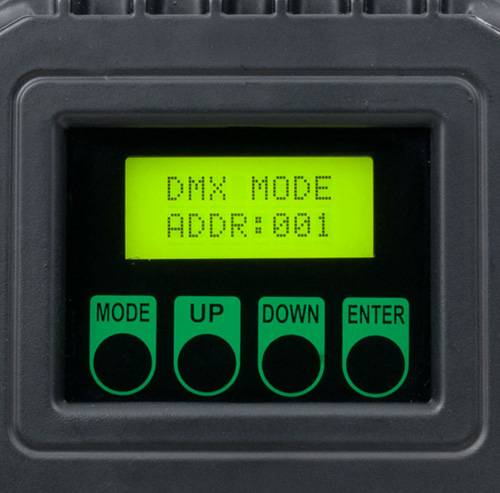

- (4) Button Touch Control Panel
- LCD Menu Display
- IP DMX In/Out
- IP Power In/Out
Size / Weight
- Length: 12.3" (313mm)
- Width: 6.2" (157mm)
- Vertical Height: 11.8" (300mm)
- Weight: 12.6 lbs (5.7 kg)
Electrical / Thermal
- AC 110-250V - 50/60 HZ
- 150W Max Power Consumption
- Power Linking: 8pcs @ 110V / 18 pcs @ 240V
- 68°F to 113°F (20°C to 45°C)
Approvals / Ratings
Installation
- Rigging: Integrated Dual Yoke / Floor Stand
- Working Position: Any (360°)

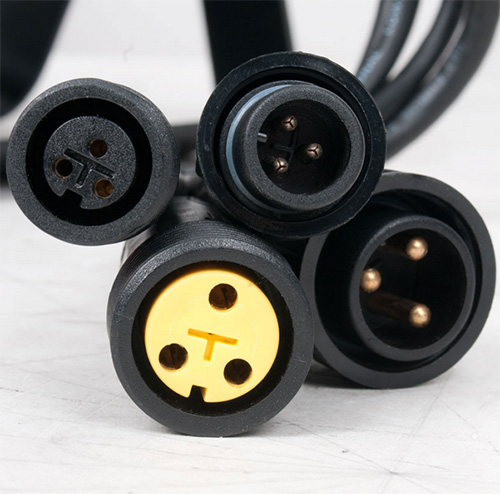

Included Items
- Male Edison to IP Female Power Cable 2 m (6.6 ft)
- Male 3pin XLR to IP Female DMX Input Cable 1 m (3.3 ft)
- Female 3pin XLR to IP Male DMX Output Cable 1 m (3.3 ft)

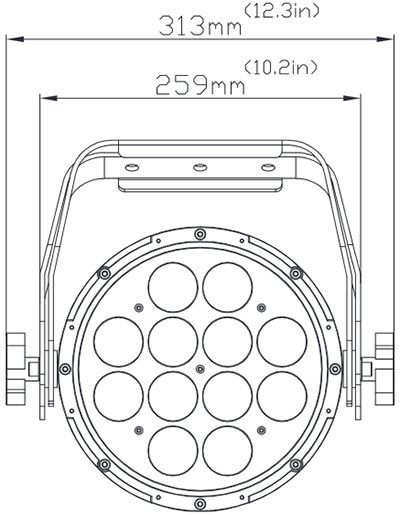

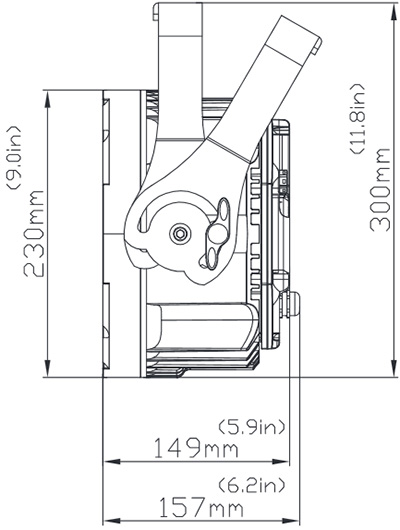

Dimensions
Downloads
SIXPAR 200IP Spec Sheet
