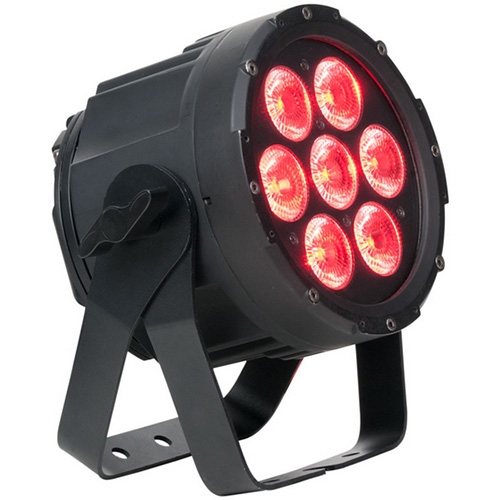

Elation SIXPAR 100IP LED

The new IP65 rated SIXPAR 100IP features (7) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15 beam and 25 field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 89W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

Features

  • IP65 Rated
  • 15 Beam, 25 Beam Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM - Remote Device Management
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM


Source

(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life

Photometric Data (15 Full ON)

Output Distance
12,850 Lux (1,194 FC) 1 metre (3.3')
2,880 Lux (268 FC) 2 metres (6.6')
1,401 Lux (130 FC) 3 metres (9.8')
848 Lux (79 FC) 4 metres (13.1')
571 Lux (54 FC) 5 metres (16.5')


Effects

  • Electronic Strobe
  • Colour and Chase Macros
  • Electronic Dimming: 0% - 100%
  • 5 Variable Dimming Curve Modes




Control / Connections

  • (4) DMX Channel Modes (6 / 7 / 8 / 12)

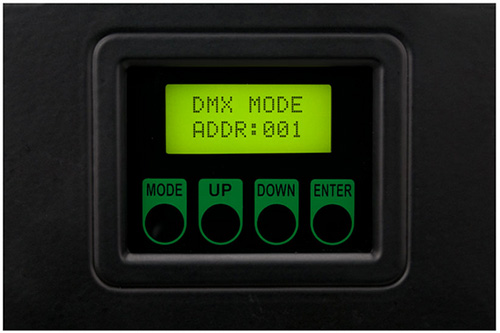

  • (4) Button Touch Control Panel
  • LCD Menu Display
  • IP DMX In/Out
  • IP Power In/Out




Size / Weight

  • Length: 10.1" (257 mm)
  • Width: 6.2" (158 mm)
  • Vertical Height: 9.6" (243 mm)
  • Weight: 9.5 lbs (4.3 kg)


Electrical / Thermal

  • AC 110-250V - 50/60Hz
  • 89W Max Power Consumption
  • Power Linking: 12pcs @110V / 25pcs @240V
  • 68F to 113F (20C to 45C)


Approvals / Ratings

  • CE Approved
  • IP65 Rated


Installation

  • Rigging: Integrated Dual Yoke / Floor Stand
  • Working Position: Any (360)

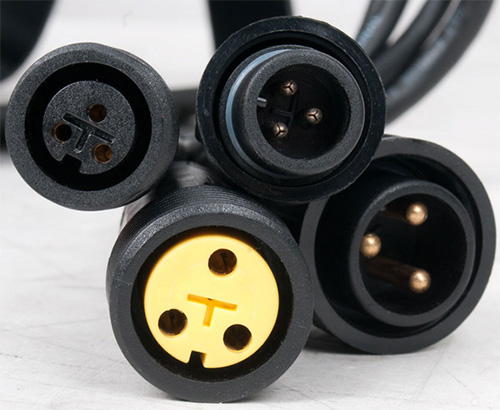

Included Items

  • Male Edison to IP Female Power Cable 6.6 ft (2m)
  • Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
  • Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)

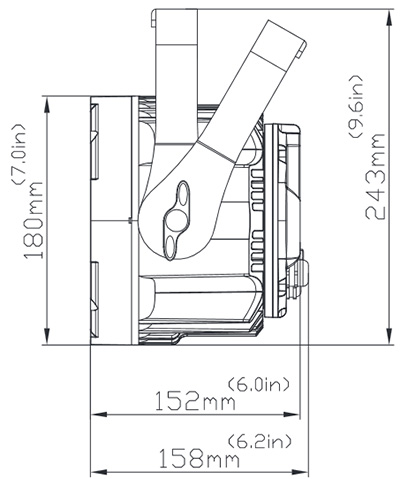

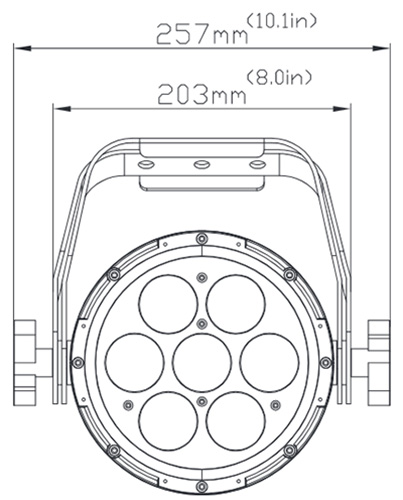

Dimensions





Downloads

SIXPAR 100 IP Spec Sheet

Price $700.00

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
Email: norm.hussey@sourceshop.com
We are not limited to the products on this site. Please call or email us and we'll do our best to locate your product.
