Elation DW Profile LED Fixture
The new DW Profile features an immensely powerful 250W, 100,000 hour average life dynamic LED
engine with >93 CRI.
This fixture also features 17° to 27° manual zoom, manual and DMX controlled colour temperatures and
dimming, variable colour temperatures (3,000K - 6,000K), variable dimming curves, (4) blade manual
framing shutters, supports B size glass, metal, or HT transparency glass gobos, flicker free operation for
TV and FILM, 3 and 5 pin in/out DMX and powerCON in connections, (4) button (2) dial control panel,
300W max power consumption, and a multi-voltage universal auto switching power supply (100-240V).
Features
- 17° - 27° Manual Zoom
- (4) Blade Manual Framing Shutters
- Variable Colour Temperature Settings (3,000K - 6,000K)
- Manual and DMX Controlled Strobe and Dimmer
- Flicker Free Operation for TV and FILM
Source
- 250W Dynamic LED Engine >93CRI
- 100,000 Hour Average Life

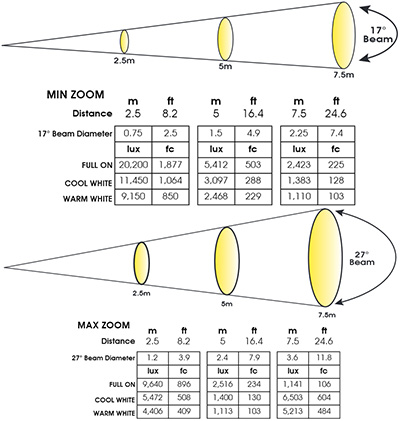

Photometric Data
- 20,200 LUX 1877 FC @8.2' (2.5M) (17° Full On 4,200K)
- 9,640 LUX 896 FC @8.2' (2.5M) (27° Full On 4,200K)
Effects
- Variable Strobe Settings (1-18 fps)
- Electronic Dimming (0% - 100%)
Gobos
Supports B Size Glass, Metal, HT Transparency Gobos
Gobo Size: OD 86mm / IA 64mm / Thickness 0.15mm
Control / Connections
- (7) DMX Channel Modes (2 / 3 / 8)
- Manual Zoom
- Manual and DMX Colour Temperature and Dimmer

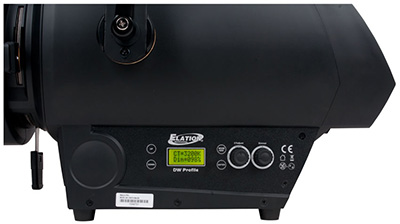

- (4) Button and (2) Dial Control Panel
- LCD Menu Display

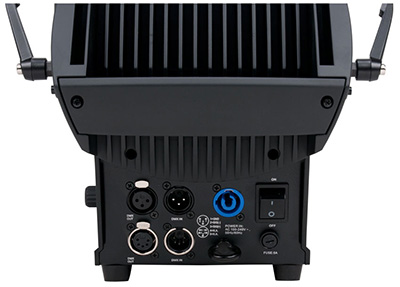

- 3pin and 5pin DMX In/Out
- powerCON In

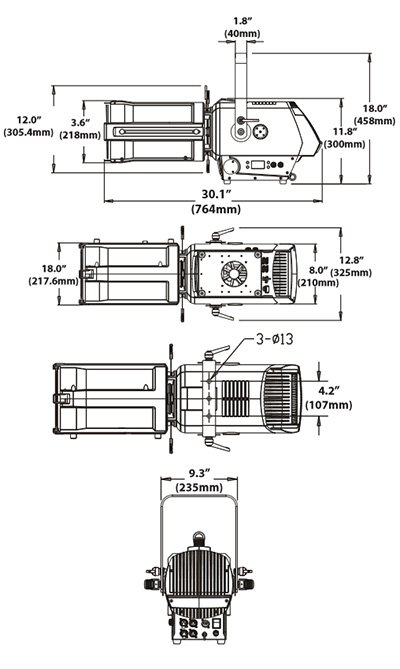

Size / Weight
- Length: 30.1" (764mm)
- Width: 12.8" (325mm)
- Vertical Height: 18.0" (458mm)
- Weight: 30.0 lbs (13.6 kg)
Electrical / Thermal
- AC 100-240V - 50/60Hz
- 300W Max Power Consumption
- 14° to 113°F (-10° to 45°C)
Approvals / Ratings
Installation
- Rigging: Clamp or Stand (Not Included)
- Working Position: Any (360°)
Included Items
- (1) powerCON Cable
- (1) 3pin XLR Cable
- (1) Safety Cable
Downloads
DW Profile Product Manual
Price $2399.00
