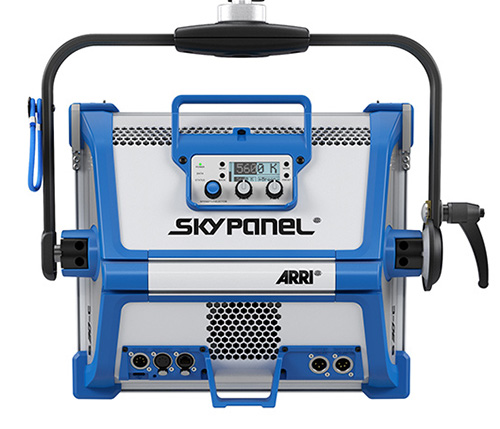

ARRI SkyPanel S30-C

The S30 is a smaller, more portable version of the S60 (half its length) and it is perfect for on-the-go mobile applications.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 1 kW tungsten soft light or a 3 kW tungsten space light, the SkyPanel S30 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and colour gives users an unprecedented amount of control.



Features

  • Fully Tuneable from 2800K - 10000K
  • Plus/Minus Green correction
  • Vibrant Colour Selection (RGB+W Colour Gamut)
  • Hue and Saturation Control
  • High Colour Rendering
  • Low Power Consumption (200W Nominal)
  • Tremendous Output - Brighter than 1kW Tungsten Soft Light
  • Fully Dimmable from 0 - 100%
  • Lightweight and Compact
  • Beautiful Soft Beam of Light
  • Interchangeable Diffusion Panels
  • Wide Range of Accessories Available
  • Thin Profile
  • Onboard Battery Connection (23 - 36V DC)

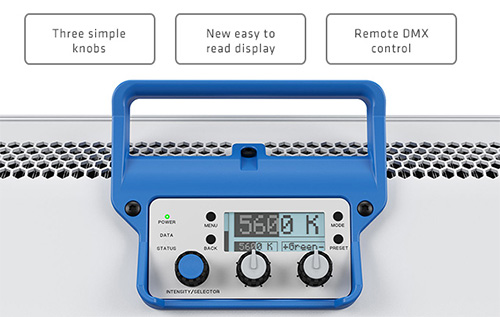

  • Onboard Simple Control Panel
  • Onboard DMX In and Out
  • RDM Implementation
  • USB-A Connection for Firmware Updates
  • EtherCon port for network connectivity
  • Available in Blue/Silver and Black
  • Fan Mode Selection
  • External Lightweight PSU
  • powerCON TRUE1 Power Connector




Technical Specifications

Lamphead
Optical System Soft Diffusion Panel
Light Aperture 645 x 300 mm
(25.4 x 11.8 inches)
Beam Angle 115 (Half Peak Angle)
Weight Manual Version: 7.4 kg (16.3 lbs)
Pole Op Version: 9.0 kg (20 lbs)
Handling Aluminum Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin)
Tilt Angle +/- 90
Lamphead Voltage Input 48 VDC
Power Consumption 200 W Nominal, 220 W Maximum
Lamphead Power Connection Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 - 36 VDC
Battery Mode Light Output 100% of Total Output
White Light 2,800K - 10,000K Continuously Variable Correlated Color Temperature
Coloured Light Full RBG+W Color Gamut with Hue and Saturation Control
Colour Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Colour Rendition CRI Average > 95
TLCI Average > 91
Green-Magenta Adjustment Continuously Adjustable (Full Minusgreen to Full Plusgreen)
Dimming 0 - 100% Continuous
Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A
Remote Device Management (RDM8) DMX Setup, Hour Counter and Standard RDM Commands
Software Interface Ethernet: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac USB-A:
Software upgrade via flash drive
Housing Colour Blue/Silver, Black
Ambient Temperature Operation -20 - 45C (-4 - 113F)
Protection Class IP 20
Estimated LED Lifetime (L70) 50,000 hours
Estimated Colour Shift Over Lifetime +/- 5% K
Certifications CE, FCC, GS, cNRTL, CB


Power Supply Unit
Power Supply Input Range 110-240 VAC, 50/60 Hz
Power Supply Output Range 48 VDC
Power Input Connection powerCON TRUE1 (Bare Ends / Schuko / Edison Cables Available)
Power Output Connection Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight 2.1 kg (4.6 lbs)
Dimensions 383mm x 116mm x 90mm
(15" x 4.6" x 3.5")
Control Onboard On/Off Switch
Mounting Super Clamp Attachment / SkyPanel PSU Rail Mount


Accessories

Diffusion
Description Part Number USD List Price
Diffusion S30
SkyPanel Lite, Standard and Heavy Diffusion panels have been developed to work perfectly with the S30-C models. Standard Diffusion panel offers medium diffusion and produces optimal light output and beam quality. The Lite Diffusion is less diffuse and therefore allows more light to pass through, while the Heavy Diffusion is more diffuse and allows less light through, but provides a softer beam quality.

  • Produces homogeneous beam of light with great output
  • Plastic diffusion material and rugged metal frame
L2.0007327 Lite Diffusion
L2.0007325 Standard Diffusion
L2.0007326 Heavy Diffusion
$70.00

$70.00

$70.00
Light Control
SkyBender S30
The SkyBender produces a uniform intensity light field over the length of any surface, transforming the beam by simply sliding into the front of the fixture. This is the perfect accessory for lighting a green screen, creating color wall washes, lighting a translight or backdrop, or evenly lighting a cyclorama.

  • Additional Versatility
  • +/- 1/6 F-Stop Uniformity
  • Smooth & Even Distribution
  • Lightweight design
  • Slides into the primary accessory slot
L2.0010271 $690.00
Intensifier S30
This intensifier panel for SkyPanel S30-C increases light output by up to 50% while maintaining a soft, even beam of light. The increase in output is achieved by capturing some of the light going off to the side and refocusing it in a more forward direction. Light output in the center is thereby intensified and yet the quality of the light is retained.

  • Increased output up to 50%
  • Maintains homogeneous, soft beam of light
L2.0007823 $230.00
4-leaf Barndoor S30
The 4-leaf barndoor for the S30 allows for control of light spill and narrowing of the beam angle. Additional small flaps protect against light leak between the lamphead and the barndoors.

  • Lightweight and Rugged Design
  • Two safety hooks to hold the barndoor in place
  • 4-Leaf design with light leak flaps
  • Slides into outer accessory slot allowing for changing of diffusion panels without the removal of the barndoors
L2.0008187 $240.00
4-Chamber Eggcrate S30
This 4-chamber eggcrate is 130 mm thick (5.1 inches) and controls light by limiting the half peak angle to 60.

  • 4 Channels design allows for minimal light loss
  • 130 mm (5.1 inches) thick
  • 60 HPA
  • Rugged design
  • Extra accessory slot for stacking other SkyPanel accessories
  • Slides into the primary accessory slot
L2.0008048 $100.00
Honeycomb 60 S30
The 60 Honeycomb for the S30 controls the light by reducing the beam angle to approx. 60.

  • Honeycomb design reduces multiple shadows
  • 14 mm (0.6 inches) thick
  • ~60 HPA
  • Slides into the primary accessory slot
L2.0008064 $230.00
Honeycomb 30 S30
The 30 Honeycomb for the S30 controls the light by reducing the beam angle to approx. 30.

  • Honeycomb design reduces multiple shadows
  • 14 mm (0.6 inches) thick
  • ~30 HPA
  • Slides into the primary accessory slot
L2.0008065 $230.00
Snoot S30
This S30 snoot is 130 mm thick (5.1 inches) and controls light, not allowing spill light from the sides of the lamphead.

  • Straight wall snoot with one large chamber
  • 130 mm (5.1 inches) thick
  • Rugged design
  • Extra accessory slot for stacking other SkyPanel accessories
  • Slides into the primary accessory slot
L2.0008019 $90.00
Extra Diffusion Slot S30
The S30 Extra Diffusion Slot slides into the primary accessory slot of the SkyPanel and allows for stacking for multiple diffusors.

  • Fits all SkyPanel S30 Diffusors
  • Top safety latch
  • Thin profile
  • Slides into the primary accessory slot or the front of the SkyPanel Snoot or Egg Crate
  • Extra accessory slot for stacking other SkyPanel accessories
L2.0008189 $70.00
Lightbanks
Chimera Lightbank with Frame S30
The Lightbank and Frame for the S30 by Chimera is a professional grade soft box that increases the light aperture of the SkyPanel by roughly 100%. The lightbank comes with several diffusions and folds away for storage. The frame slides directly into the SkyPanel accessory slot.

  • Specially made for SkyPanel S30
  • Professional Grade Construction
  • Small Video Pro front
  • Includes: Lightbank, frame, and three diffusions
L2.0008196 $740.00
DoPchoice SnapGrid 40 for S30
The SnapGrid for the S30 by DoP Choice attaches directly to the front of the SkyPanel and provides for directional light control. The SnapGrid easily folds away for storage.

  • Specially made for SkyPanel S30
  • HPA: ~40
  • No Mounting Hardware Required
L2.0008142 $300.00
DoPchoice SnapBag for S30
The SnapBag for the S30 by DoP Choice attaches directly to the front of the SkyPanel and creates a larger aperture with beautiful soft light. The SnapBag easily folds away for storage.

  • Specially made for SkyPanel S30
  • Comes with 1/2 Grid Cloth Diffusion
  • No Mounting Hardware Required
L2.0008141 $410.00
DoPchoice SnapGrid 40 for SnapBag S30
The SnapGrid for the SnapBag by DoP Choice attaches to the front of the S30 SnapBag and provides directional light control. The SnapGrid easily folds away for storage.

  • Specially made for SkyPanel S30
  • Comes with 1/2 Grid Cloth Diffusion
  • No Mounting Hardware Required
L2.0008140 $360.00
Mounting
Center Mount Yoke
The Center Mount Yoke is a ball-in-socket yoke that allows for positioning the SkyPanel in almost any orientation including vertically. The Center Mount Yoke replaces the traditional stirrup and slides on to the rail mounting system located on the back of the SkyPanel.

  • Ball-in-socket design
  • 28 mm (Junior) Spigot with long "goose neck"
  • +/- 90 Movement
  • Tool-less attached to the rail mounting system on the SkyPanel
  • Works with both the S30 and S60
L2.0008078 $260.00
Fixed Center Mount Yoke
The Fixed Center Mount Yoke is a fixed 28 mm spigot that allows for direct attachment from the back of the SkyPanel to mounting hardware. The Fixed Center Mount Yoke replaces the traditional stirrup and slides on to the rail mounting system located on the back of the SkyPanel. Great for low ceilings or pointing the SkyPanel straight down or straight forward (i.e. a wall of SkyPanels)

  • 28 mm (Junior Spigot)
  • Tool-less attached to the rail mounting system on the SkyPanel
  • Works with both the S30 and S60
L2.0008080 $90.00
Double Vertical Yoke S30
The Double Vertical Yoke allows for mount two SkyPanel S30 fixtures one directly above the other.

  • High strength Aluminum yoke
  • Independent tilt of both lampheads
  • 28 mm (Junior) Spigot
  • High strength tilt locks
L2.0008184 $270.00
Battery Adapters
Battery Adapter Plate for Anton/Bauer
The Battery Adapter Plate for Anton/Bauer allows for the attachment of two Gold Mount style batteries to the SkyPanel. With a short cable, the battery adapter makes the SkyPanel truly mobile. Both batteries are required to supply the correct voltage to the lamphead.

  • Supports two Anton Bauer Gold Mount Batteries (in series)
  • SkyPanel Quick Release System
  • On / Off switch
  • 4-pin XLR output
  • Includes 0.5m and 3 m 4-Pin XLR
  • Battery Min. Recommendation: 14.4V, 100 Wh Capacity
L2.0008071 $371.00
V-Mount Battery Adapter Plate
The V-Mount Battery Adapter for SkyPanel allows for the attachment of two V-Mount style batteries to the SkyPanel. With a short cable, the battery adapter makes the SkyPanel truly mobile. Both batteries are required to supply the correct voltage to the lamphead.

  • Supports two V-Mount Batteries (in series)
  • SkyPanel Quick Release System
  • On / Off switch
  • 4-Pin XLR output
  • Includes 0.5 m and 3 m 4-Pin XLR
  • Battery Min. Recommendation: 14.4V, 100 Wh Capacity
L2.0008070 $371.00
Cables
DC Cables (XLR) SkyPanel
The DC Cable connects the SkyPanel PSU to the SkyPanel lamphead.

  • 3-Pin XLR Female to 3-Pin XLR Male
  • Special SkyPanel 10 mm Diameter Cable
L2.0007492 0.5 m (1.6')
L2.0007491 1 m (3')
L2.0007493 3 m (10')
L2.0007494 10 m (33')
L2.0007860 15 m (49')

$35.00

$40.00

$70.00

$140.00

$200.00
Mains Cables, powerCON TRUE1
The Mains Cables connect the SkyPanel PSU to a mains power outlet (110 - 250 V AC - 50 / 60 Hz).

  • Length: 3 m (9.8 ft)
  • powerCON TRUE1 Connector
  • Mains Connector (Schuko, Edison, Chinese)
  • Insulated rubber cable H07RN-F 3G1,5,EN
  • Rubber insulated cable 3xAWG16, UL (Edison)
L2.0007515 Edison
L2.0005974 Bare Ends

$60.00

$60.00
PSU Attachments
Rail Mount Adapter for SkyPanel PSU
The Rail Mount Adapter attaches to the SkyPanel PSU (no tools required) and allows for the mounting of the PSU to the rail mount system on the back of the SkyPanel lamphead. If an all-inone system is required, this accessory will accomplish the task.

  • Attaches to SkyPanel PSU or Battery Adapter Plates
  • Tool-less system allows for quick attachment and release from the PSU
  • Slides onto rail mount system on the back of SkyPanel
L2.0008082 $40.00
Super Clamp Adapter for SkyPanel PSU
The Super Clamp Adapter attaches to the back of the SkyPanel PSU (no tools required) and allows for the mounting of the PSU to a wide variety of objects including light stand stems and truss.

  • Attaches to SkyPanel PSU or Battery Adapter Plates
  • Comes with Super Clamp for mounting to a variety of objects
  • Tool-less system allows for quick attachment and release from the PSU
L2.0006921 $70.00


Price List

Part Number Description USD List Price
L0.0007711 S30-C, Manual, Blue/Silver, 3 m DC Cable, S30 PSU, PSU Rail Mount, Standard Diffusion Panel, Edison powerCON $4,500.00
L0.0007714 S30-C, Pole Op, Blue/Silver, 1 m DC Cable, S30 PSU, PSU Rail Mount, Standard Diffusion Panel, Bare Ends powerCON $4,500.00
L0.0007716 S30-C, Pole Op, Black, 1 m DC Cable, S30 PSU, PSU Rail Mount, Standard Diffusion Panel, Bare Ends powerCON $4,500.00

Price $Call or Email for Quote

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.
