Fiilex Q500 LED Fresnel

The Q500 leads the revolution in LED Lighting, intense power and control in a form smaller and lighter than previously seen in LEDs. The lighting world just got a lot brighter, and a lot more efficient. This one light replaces both your daylight and tungsten lights, and you can also leave behind your colour correction gels, scrims, and grip gloves.

Spectacular Specular Light

The Q500 produces an amazing 750W equivalent output while only using 185W. It is flicker free at any frame rate and can be dimmed from 100-5% with smooth transitions. It has an adjustable beam angle 50-27 (with Fresnel lens). This cinematic light belongs in pictures... yours.

Ambient Light Matching and More

The Q500 is colour tunable between 2800-6500K and has Hue Control of .25 Magenta/Green, you can quickly correct for different light temperatures, sensor bias, or even adjust for different skin tones.

First light with Built in DMX Control

The Q500 is our first light with built in DMX control (512 Addresses), an LCD display, XLR5 in/out, and RJ45 in/out. You can adjust the settings of the light from the comfort of your control board so it's easy to change your lighting quickly, and keep shooting.


Features

  • 750W Equivalent Output (Tungsten) - Draw 185W
  • Colour Temperature Range 2800-6500K
  • Hue Control .25 Magenta / Green
  • Full Spectrum Light Quality - No Spikes
  • Dimming (100%-5%)
  • Flicker Free at any Frame Rate
  • Single Point Light Source - Adjustable Beam Angle 50 to 27
  • Solid State Technology - No Bulbs to Replace
  • Does Not Emit UV Light/Radiation
  • DMX Control Built In
  • LCD Display


Specifications

Size L 12" x W 12.75" x H 15" (with Yoke)
305mm x 325mm x 380mm (with Yoke)
L 12" x W 9" x H x 6.75" (without Yoke)
305mm x 230mm x 172mm (without Yoke)
Weight (Include Yoke) 12 lbs / 5.5 kg
LED Dense Matrix LED
Thermal Design Advanced Vapour Cooling
Beam Angle 27 - 50 (with Fresnel lens)
CCT Range 2800-6500K Continuous Tuning
Hue Control .25 Magenta/Green
CRI >93
LED Life 42,000 hrs - (15 Years of average use)
Power Consumption 185W Max / Comparable in Output to 750W Tungsten
Input Voltage AC Power: 100-240 VAC, 50~60Hz, Max 185W
Input Port Detachable Power Con Cable
DMX Control 2 XLR ports and 2 RJ45 ports (512 Addresses)
Temperature Range 32-104F / 0-40 C (over temperature protection)

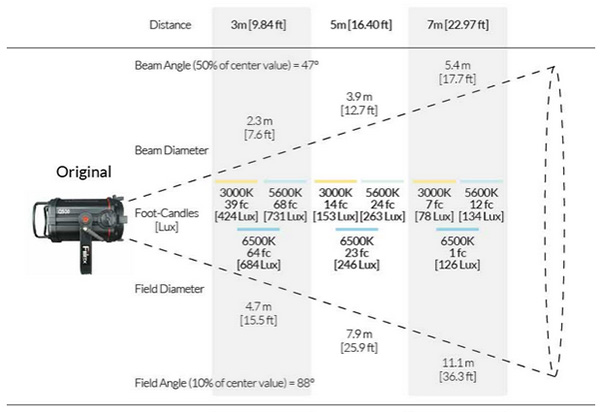

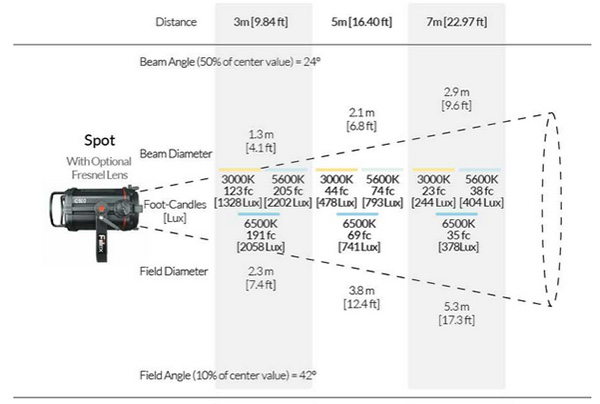

Photometrics







Items Included

(1) Q500 Light Head
(1) Q500 Barndoor
(1) 5" Fresnel Lens
(1) 20' PowerCon Cable
(1) Cord Tie


Compatible Accesories

Dome Diffuser
Dome Diffuser Extension
Fresnel Lens

Price $2495.00
