Kino Diva LED 20/30 DMX

Kino Flo debuted the Diva-Lite LED 30 & 20 DMX at NAB 2016 which received Best of Show awards for video production lighting.



The awards are three of the industry’s most prestigious technology honors presented at the NAB 2016 show from Videomaker magazine, Digital Video magazine and Video Edge online magazine.

Diva-Lite LED now has three Menu options, one white and two color menus. Those who prefer to work with white light can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight.



In the color menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave similar to a traditional color wheel, where you have white light in the center, the Hue angle determines the color along a 360-degree range, and Saturation determines how much color is applied. The second color menu provides individual red, green, blue (RGB) control. The RGB menu is a great way to work with apps with predetermined RGB presets or color wheels.

Kino Flo's new Diva-Lite LED also comes with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (1.3 Amps at 120U). We also recently added new Snapbag Softbox and Snapgrid accessories.

LED Controller - White Mode
  • Kelvin presets & custom settings, 2700K-6500K
  • Universal input 100VAC-240VAC or 24VDC
  • Manual & DMX Dimming w/ Auto Terminate
  • DMX wireless (Lumen Radio)
  • Green/Magenta control
  • Flicker-free, dead quiet operation


Gels/Hue Color Mode
In addition to White mode features, Color mode includes access to:

  • Extended Kelvin color range 2500K-9900K
  • Kino Flo presets and Gels
  • Dial in any color through Hue Angle and Saturation control


RGB Color Mode
Additional Color mode includes:

  • Individual Red, Green, Blue (RGB) control
  • Works with Apps with predetermined RGB presets or color wheels

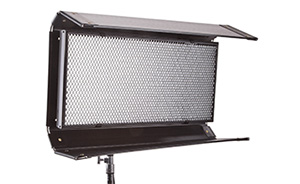

Diva-Lite LED Fixture
  • Built-in Barndoors
  • Removable Honeycomb Louver
  • Center Mount


Features

  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color pallete from 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.3A, 120VAC and 7A, 24VDC (Diva-Lite LED 30)
  • Flicker-free, dead quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • No color shift while dimming
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Built-in Barndoors
  • Center Mount
  • Mounts to stand, light enough to be hand-held


For more information visit the Kino Flo website.

Price $Call or Email for Quote

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
