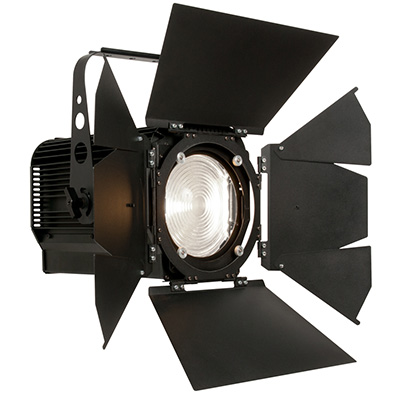

Elation LED Fresnel - TVL F1CW

The new TVL F1CW features a 100W Cool White 5600K LED engine, motorized 12 - 40 zoom, no noise thermo-optical cooling, DMX controlled dimmer and zoom, flicker free operation for TV and FILM, 5pin DMX in/out, powerCon, 2 Ethernet (RJ45) connections, integrated yoke / handle, 141W max consumption, and a multi-voltage universal auto switching power supply (100-240v).

Features

  • 12 - 40 Motorized Zoom
  • DMX Controlled Dimmer/Zoom
  • Flicker FREE Operation for TV and FILM
  • No Noise Thermo-Optical Cooling Technology


Source

  • (1) 100W Cool White LED Engine
  • 50,000 Hour Average Life


Photometric Data

High CRI = 95 / 34.64 lm/W 5600K ( 200K)
3,350 Max LUX @5M (12 Full On 5600K)

Effects

  • Zoom: 12 - 40
  • Dimming: 0% - 100%

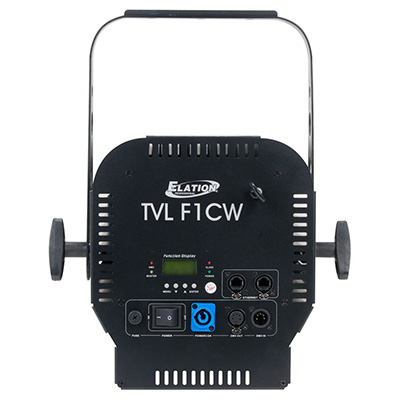

Control / Connections

  • 4 Button Control LED Menu Display Panel
  • 2 DMX Channels
  • 5pin DMX In/Out
  • 2 Ethernet (RJ45) Ports
  • powerCON Power In

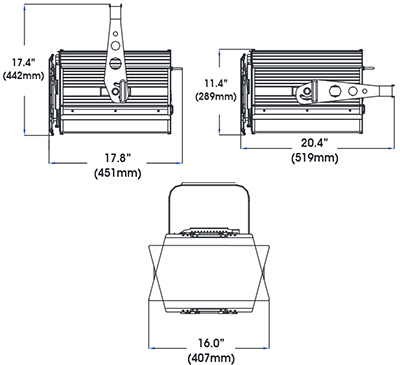

Size / Weight

  • Length: 20.4" (519mm)
  • Width: 16" (407mm)
  • Vertical Height: 17.4" (442mm)
  • Weight: 35 lbs. (15.8 kg)




Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 141W Max Power Consumption
  • 40C / 104F Max Ambient Temperature


Approvals / Ratings

  • CE pending
  • cETLus pending
  • IP20 Rated


Installation

  • Rigging: Clamps (Not Included)
  • Working Position: Any (360)


Included Items

  • Integrated Yoke/Handle
  • powerCON Cable

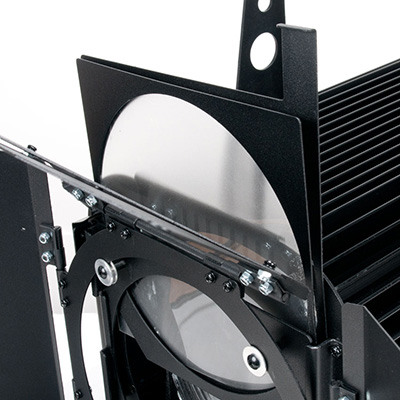

  • Rotating Barn Door
  • Gel Frame

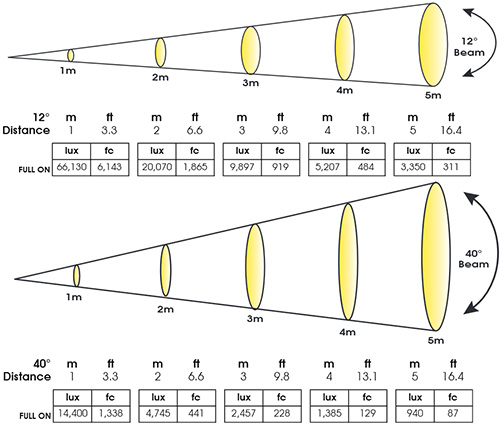

Photometric Data



Downloads

TVL-F1CW Product Manual

Price $2100.00

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
