Cineo MavX

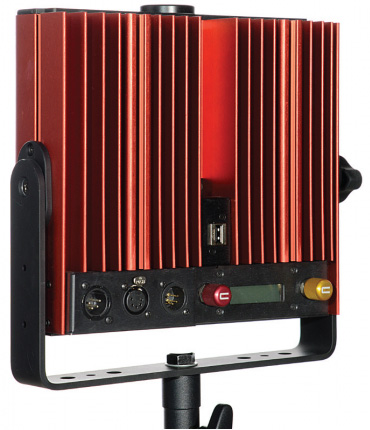

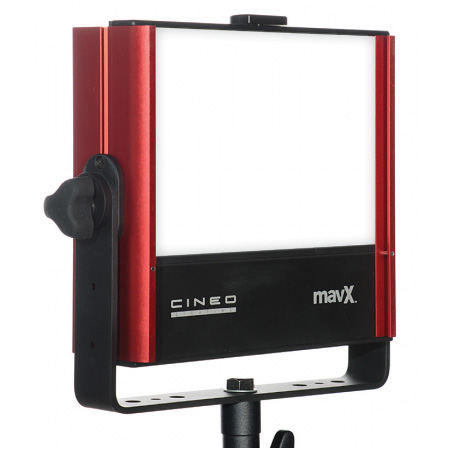

The award-winning Cineo MaverickTM mid-power softlight is now available in a color-tunable version: the Cineo MavX.



It provides all of the color rendering and output benefits of Remote Phosphor, while offering the ability to dynamically color tune from 2700K to 6500K. MavX includes several updated features designed to make it the perfect lighting tool for small studio and portable applications. Compact, exceptionally durable and powerful, MavX delivers a volume of light equal to a traditional 1K soft source with no color shift or icker at any output level. Like all other Cineo Lighting fixtures, MavX uses passive thermal management for completely silent operation. MavX supports Cineo’s Photo-Accurate Dimming, which matches the dimming curve to camera stops. Local control is simple and intuitive, complimented by both wired and wireless DMX control built-in.

For studio applications, MavX delivers up to 8,000 lumens from a lightweight, compact package: perfect for lighting broad areas where grid height is challenging. A wide range of accessories includes barn doors, louvers and softboxes for accurate lighting control. MavX is also ideal as a portable, battery-powered soft source. Cineo’s patented SmartPowerTM technology provides consistent light output during battery operation regardless of the charge state of the battery. It also protects to your battery eet by providing adjustment to the fixture’s current draw to match the output capability of your batteries.

Extremely accurate color rendering is achieved with Cineo-developed LED phosphor formulations, color- tunable from 2,700K to 6500K, with accurate presets at 3200K, 4300K and 5600K.

The Cineo MavX is the smart soft lighting choice designed to t nearly every installation or production budget.

Features

  • Optimized output for film, video and still photography
  • Small and lightweight
  • Weather resistant
  • Output similar to traditional 1K softlight
  • Utilizes CineoColorTM custom LED’s for accurate, consistent output
  • Colour-accurate CCT adjustment from 2700K to 6500K, with presets at 3200K, 4300K and 5600K
  • 150° light spread
  • Completely flicker-free operation
  • Silent, passive cooling: no fans
  • Rotary on-board dimming, with presets calibrated in camera stops
  • 5-pin wired DMX control for both dimming and CCT adjustment
  • Built-in LumenRadioTM wireless DMX control included 80/20 T-Slot mounting slots for maximum mounting flexibility
  • Easily removable yoke
  • Accessories include AC adapter, V-Lock battery adapter, Goldmount battery adapter, barn doors, grids, louvers, and soft boxes


Specifications

Input: 10.5-28 VDC input; 75, 120, 135 watts user configurable
Maximum output: up to 8,000 lumens
SmartPowerTM technology delivers constant output as battery voltage decreases
Size: 9.5” x 8.5” x 3.25” (241mm x 216mm x 83mm)
Weight: 5 lbs. (2.3 kg)
Mounting: 4-pin XLR power input
Rated: 50,000 hr. L70 rated
Environmental temperature range: -20° – +40° C
Max. Temperature rise: +45° C
2-year parts and labour warranty
ETL, cETL, CE and RoHS Compliant
Zero UV light emitted
Made in USA


Output

CCT Foot-candles @ 10ft. Lux @ 3m.
2700 30 324
3200 32 346
4300 34 367
5600 35 378
6500 33 356


Downloads

MavX Cut Sheet

MaxX User Guide

Price List

Part Number Description USD List Price
Kits
500.0015 MavX Studio Kit. Includes MavX fi xture, yoke, TVMP Adapter, 150W power supply with mounting hardware, locking IEC to Edison AC power cord. $2,250.00
500.0023 MavX V-Lock Portable Kit. Includes MavX fi xture, yoke, TVMP Adapter, 150W power supply with mounting hardware, locking IEC to Edison AC power cord, V-Lock battery Adapter with mounting hardware. $2,400.00
500.0024 MavX A/B Goldmount Portable Kit. Includes MavX fi xture, yoke, TVMP Adapter, 150W power supply with mounting hardware, locking IEC to Edison AC power cord, Goldmount battery Adapter with mounting hardware. $2,400.00
500.0123 MavX V-Lock Travel Kit. Includes MavX fi xture, yoke, TVMP Adapter, 150W power supply with mounting hardware, locking IEC to Edison AC power cord, V-Lock battery adapter, 90º Louver, portable light stand and heavy-duty case. $2,950.00
500.0124 MavX A/B Goldmount Travel Kit. Includes MavX fi xture, yoke, TVMP Adapter, 150W power supply with mounting hardware, locking IEC to Edison AC power cord, Goldmount battery Adapter, 90º Louver, portable light stand and heavy-duty case. $2,950.00
Light Control
900.0090 Cineo Maverick Gel Frame $45.00
900.0089 Cineo Maverick 4-leaf Barn Door set $200.00
900.0089 Cineo Maverick 90º Louver $120.00
902.0101 Chimera™ for Maverick - Extra Small (16”x22”) 495.00
902.0103 Chimera™ for Maverick - Small (24”x32”) $495.00
902.0100 Maverick Snap Bag $295.00
100.0085 Lightweight Rental Case $300.00

Price $Call or Email for Quote

Prices in RED are Canadian Dollars.
Prices in BLUE are US Dollars.
Prices subject to change without notice.
Please Note: Not all items listed in the catalogue are regularly stocked.
Please call or email to check current inventory levels.

For volume orders, please call for a quote. Tel: 416-588-6712 Toll Free: 1-888-516-3333
